Measurement ct Wound Type Energy Monitoring Split Core Current Sensor Split Core Current Transformer

high permeability current transformer OEM

Measurement ct Wound Type Energy Monitoring Split Core Current Sensor Split Core Current Transformer

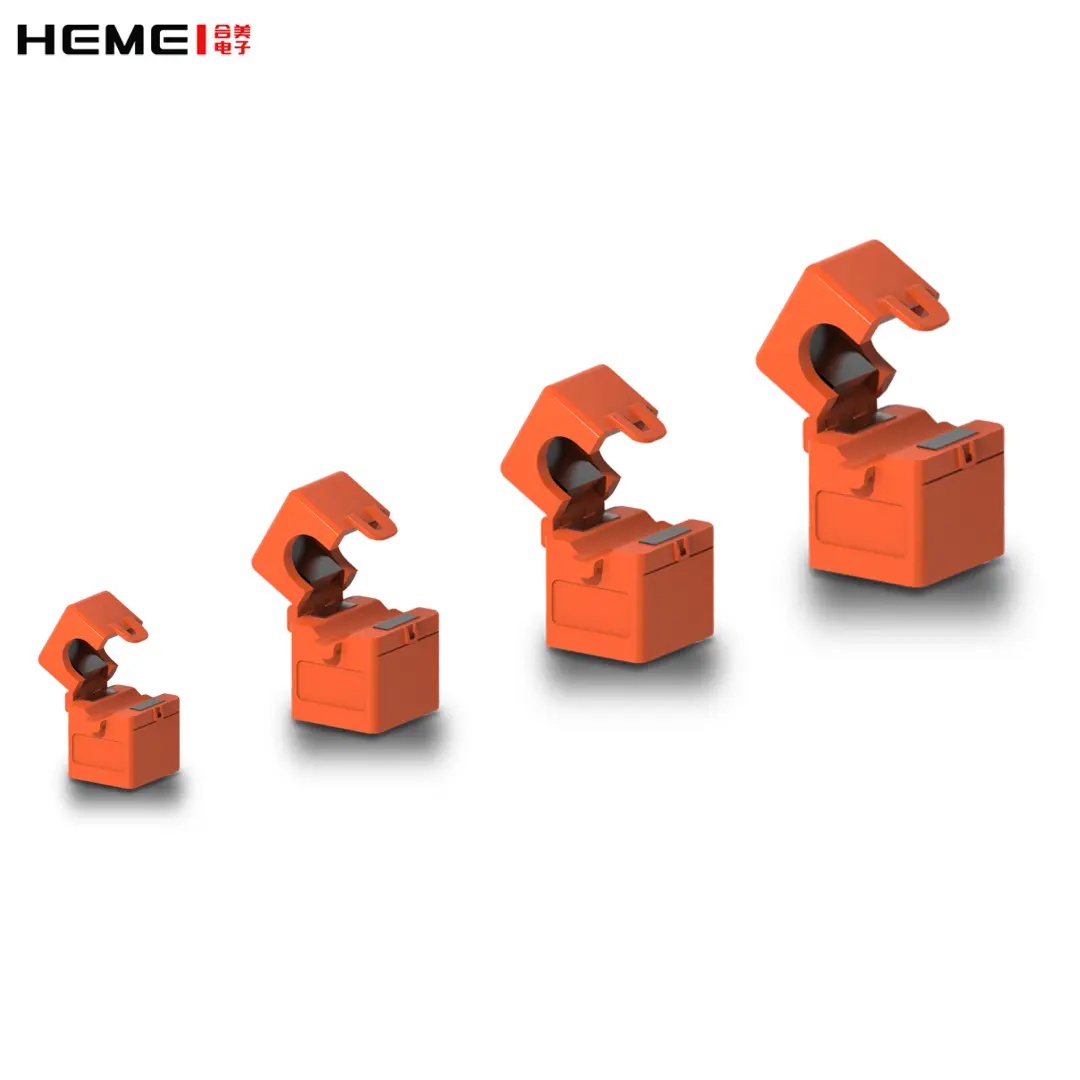

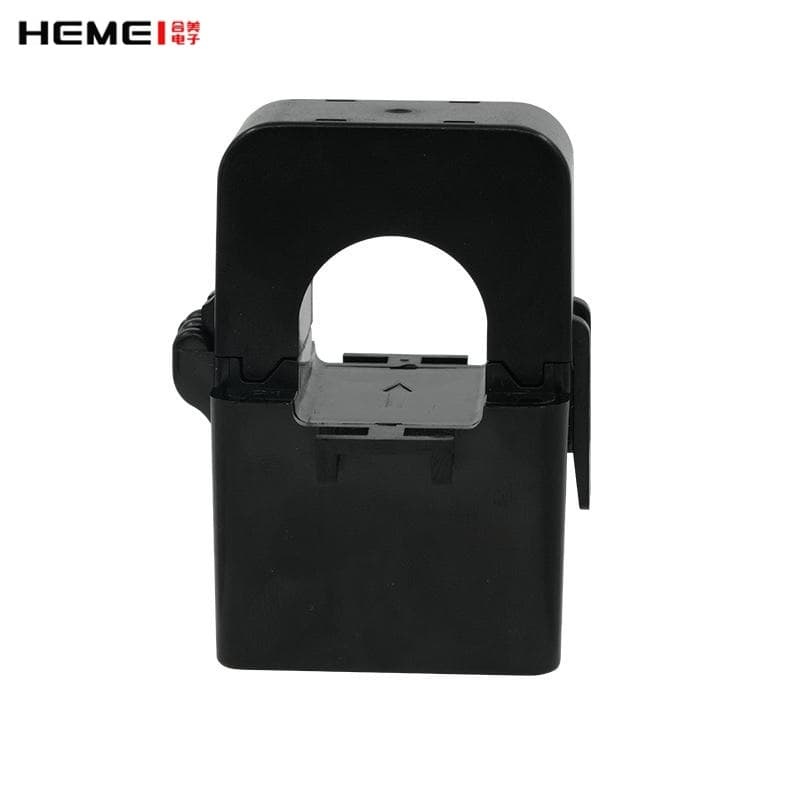

Split Current Transformers 5 to 600 amps of alternating current through the center conductor. The split core design allows for non-contact current measurement via magnetic field induction without the need to take the main wire offline and disconnect when installing the CT. This approach enables safer, simpler and portable current measurements.

Work temperature :
-40℃~70℃
Protection level :
IP68
Certification :
CE, UL
Frequency :
50Hz～5KHz
Fire resistance property :
UL94-Vo

Inquiry now

Product Details

Introduction:

The principle of current transformer is based on the principle of electromagnetic induction. Current transformers consist of a closed iron core and windings. Its primary winding has several turns and is connected in series on the line where the current needs to be measured. Therefore, it often has all the current flowing through the line. The secondary winding has a large number of turns and is connected in series with measuring instruments and protection circuits. When the current transformer is working, its secondary side loop is always closed, so the impedance of the series coil of the measuring instrument and the protection circuit is very small, and the working state of the current transformer is close to a short circuit. The current transformer is used to transform the large current on the primary side into a small current on the secondary side, and the secondary side cannot be open circuited.

Typical applications:

1. Function: For power systems with strong mobility or small space or uninterrupted power

General measurement and protection in systems.

2. Purpose: Electric power instruments, electronic multi-function electric energy meters and on-site calibrators.

Instrumentation measurement and protection.

Electrical characteristics:

1. Maximum voltage of equipment: 720V

2. Power frequency withstand voltage: 4000V50Hz /1 min (1mA)

3. Primary rated current: 0-6000A

4. Secondary rated current: 5A

5. Frequency: 50/60Hz

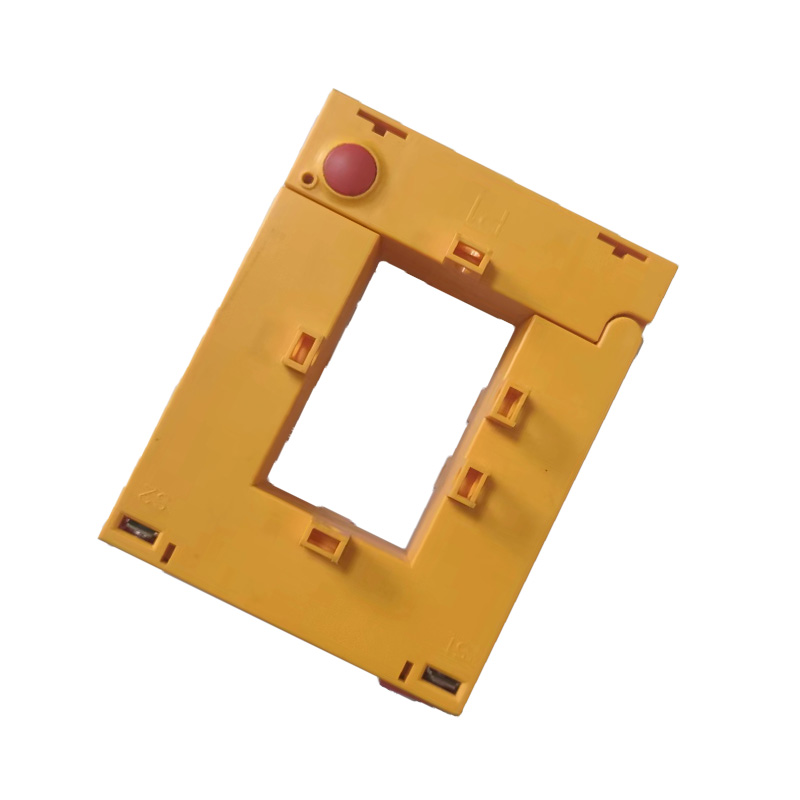

Size comparison table: (products can be customized)

Model	A(mm)	B(mm)	C(mm)	D(mm)	E(mm)	F(mm)	G(mm)	H(mm)	I(mm)	J(mm)
HMKCT-FA30*20	20	30	50	89	110	34	48	40	32	32
HMKCT-FA80*50	50	80	79	115	146	32	33	33	32	33
HMKCT-FA80*80	80	80	108	145	145	32	33	33	32	33
HMKCT-FA120*80	80	120	108	144	185	32	32	32	33	32
HMKCT-FA132*42	42	132	79	146	215	48	42	55	38	40
HMKCT-FA160*80	80	160	120	184	244	52	47	54	38	33

Basic parameters:

Hemei Electronics' current transformers can be customized with various transformation ratios, accuracy levels, sizes and shapes according to your needs. If you need similar products, please feel free to contact us!
