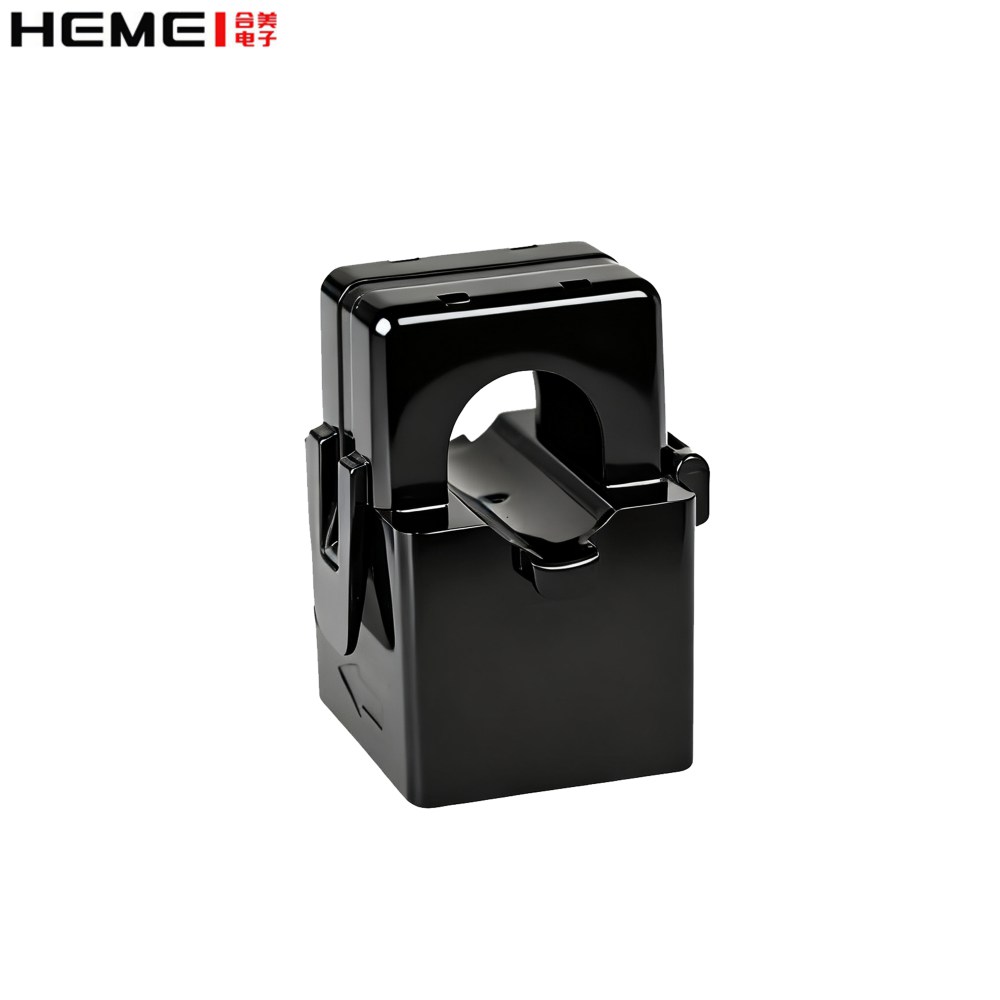

Split core current transformer

Split core current transformers are a series of miniaturized openable products designed based on the improvement of current instrument and equipment software processing capabilities. Due to the increase in current monitoring equipment, there is a need for an open-type current transformer that is easy to install and compact.

Split Current Transformers 5 to 600 amps of alternating current through the center conductor. The split core design allows for non-contact current measurement via magnetic field induction without the need to take the main wire offline and disconnect when installing the CT. This approach enables safer, simpler and portable current measurements.

Measures AC current flow to electric motors,lighting, air condition equipment, etc. Compatible with HVAC temperature control, power management, building automation systems.

Our current sensors are split-core current transformers characterized by high accuracy and low phase shift.  They are precisely designed for the electronic measurement of AC waveform current, ensuring galvanic separation between the primary circuit (power) and the secondary circuit (measurement). Covering a range from 0 A to 125 A, these current transformers are primarily intended for mounting on the primary circuit.

The split core current transformer is designed based on the principle of quick and easy use. The split structure design of the transformer does not need to disconnect the tested cable or busbar. It can perform safe and simple current testing.

The open-type current transformer is easy to install. There is no need to remove the primary busbar. It can also be operated with power without affecting the customer's normal power consumption. It can be used in conjunction with relay protection, measurement and metering devices.

Hemei Electronics is a domestic manufacturer specializing in the research, design and production of power supply current transformers, split core current transformers, clamp-type current transformers, high-precision current transformers and miniature voltage transformers. Measures AC current from 1A to 5000A with outputs of 0.333V, mA, 1A and 5A.

The split core current transformer are designed for fast and easy installation.The CTs are ideal for installation on existing electrical cables by clamping on the conductor.This method permits a safer,easy and portable current measurement.An internal precision burden resistor across the secondary winding of the CT provides a safe low voltage output and permits safe opening of the secondary.

Can be customised for various ratios, high frequency, precision and other special requirements.

Split-core current transformers are designed for quick and easy installation.The CT's have an internal precision load resistor on the secondary winding that provides a safe, low voltage output and allows the secondary winding to be safely opened.
