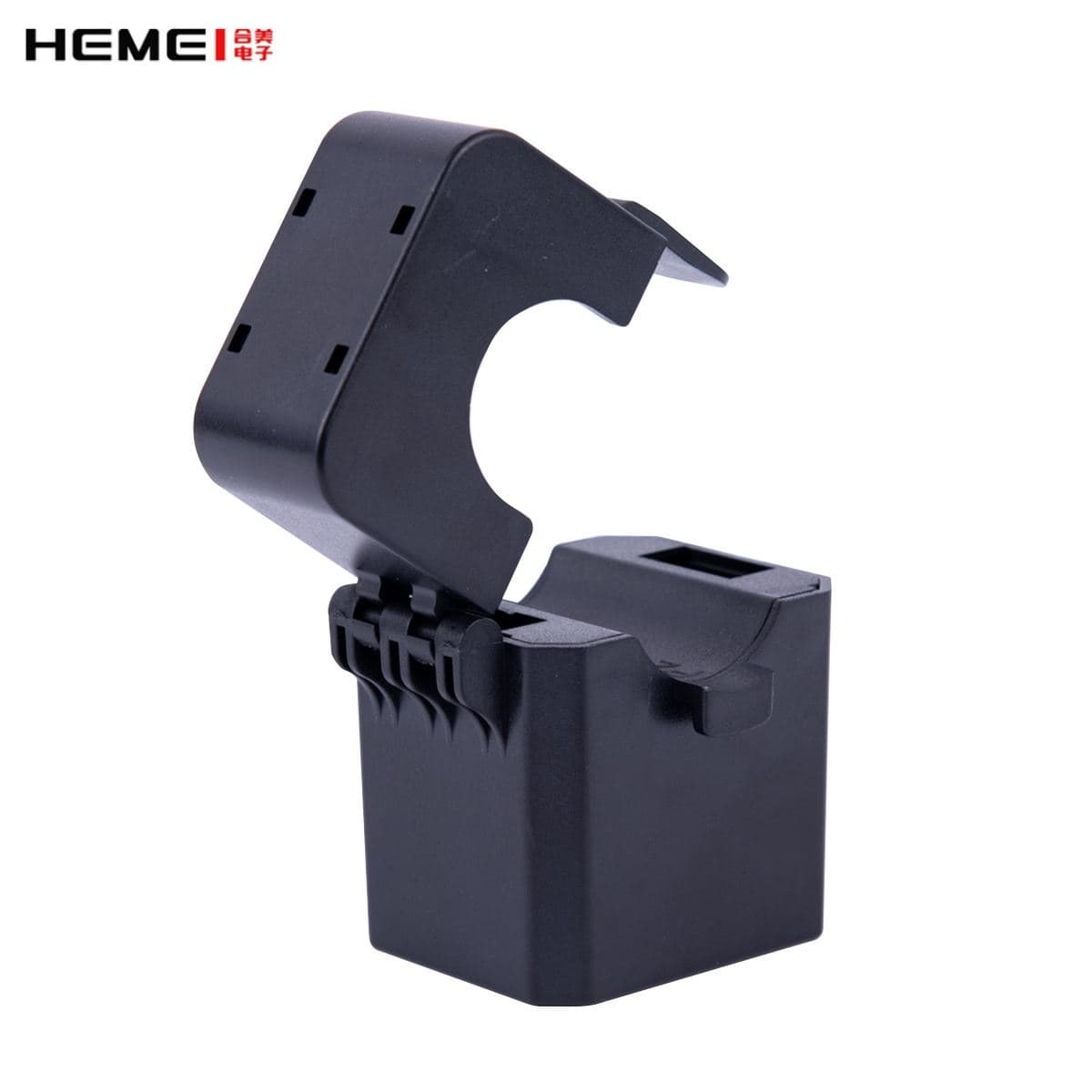

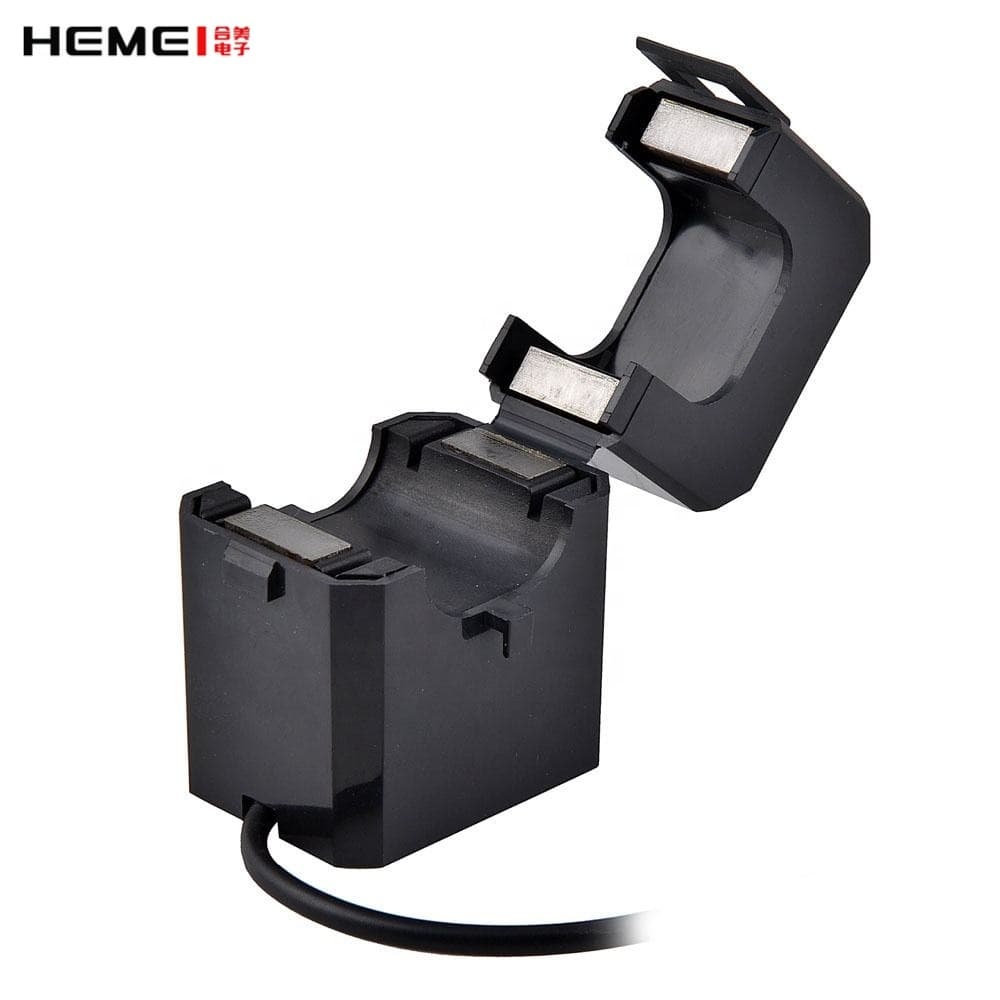

5A Output Current Transformer Wound Type Energy Monitoring Split Core Current Transformer

Features:

• Low price

• 5 sizes

• Open and close structure, easy to install and operate

Functions:

• Used for current, power, and electric energy monitoring devices

• Power factor correction devices

• Active filtering devices

Introduction:

The principle of current transformer is based on the principle of electromagnetic induction. Current transformers consist of a closed iron core and windings. Its primary winding has several turns and is connected in series on the line where the current needs to be measured. Therefore, it often has all the current flowing through the line. The secondary winding has a large number of turns and is connected in series with measuring instruments and protection circuits. When the current transformer is working, its secondary side loop is always closed, so the impedance of the series coil of the measuring instrument and the protection circuit is very small, and the working state of the current transformer is close to a short circuit. The current transformer is used to transform the large current on the primary side into a small current on the secondary side, and the secondary side cannot be open circuited.

Typical applications:

1. Function: For power systems with strong mobility or small space or uninterrupted power

General measurement and protection in systems.

2. Purpose: Electric power instruments, electronic multi-function electric energy meters and on-site calibrators.

Instrumentation measurement and protection.

Electrical characteristics:

1. Maximum voltage of equipment: 720V

2. Power frequency withstand voltage: 4000V50Hz /1 min (1mA)

3. Primary rated current: 0-6000A

4. Secondary rated current: 5A

5. Frequency: 50/60Hz

Size comparison table: (products can be customized)

Basic parameters:

Hemei Electronics' split core current transformers are designed based on the principle of fast and easy use. They have good performance and low price and are widely loved by customers at home and abroad. Please feel free to contact us!
