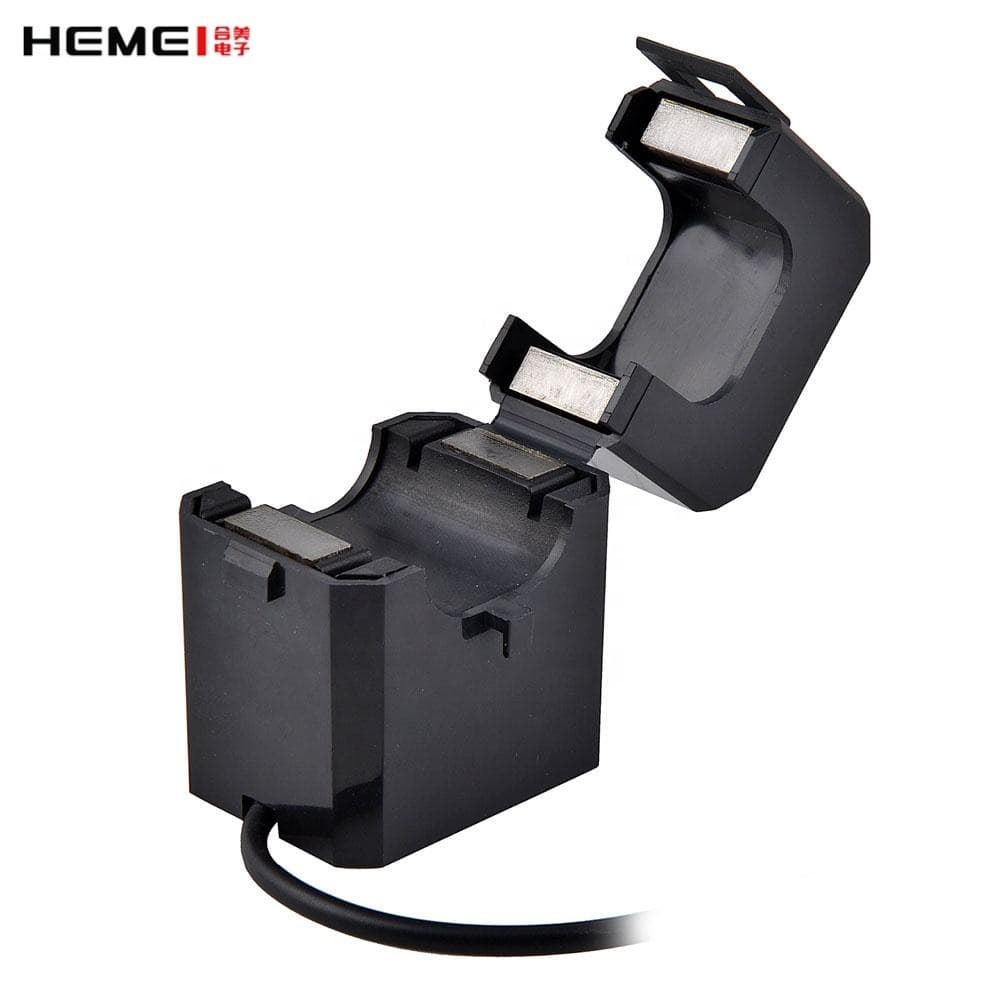

2000A/1V Current Transformer Customizable Open Type CT Factory 50Hz-60Hz Split Core Current Transformer

Introduction:

The function of the current transformer is to transform a larger primary current into a smaller secondary current through a certain transformation ratio to achieve protection, measurement and other purposes.    For example, a current transformer with a ratio of 400/5 can convert an actual current of 400A into a current of 5A.

The principle of current transformer is based on the principle of electromagnetic induction. Current transformers consist of a closed iron core and windings. Its primary winding has several turns and is connected in series on the line where the current needs to be measured. Therefore, it often has all the current flowing through the line. The secondary winding has a large number of turns and is connected in series with measuring instruments and protection circuits. When the current transformer is working, its secondary side loop is always closed, so the impedance of the series coil of the measuring instrument and the protection circuit is very small, and the working state of the current transformer is close to a short circuit. The current transformer is used to transform the large current on the primary side into a small current on the secondary side, and the secondary side cannot be open circuited.

Typical applications:

1. Function: For power systems with strong mobility or small space or uninterrupted power

General measurement and protection in systems.

2. Purpose: Electric power instruments, electronic multi-function electric energy meters and on-site calibrators.

Instrumentation measurement and protection.

Electrical characteristics:

1. Maximum voltage of equipment: 720V

2. Power frequency withstand voltage: 4000V50Hz /1 min (1mA)

3. Primary rated current: 0-6000A

4. Secondary rated current: 5A

5. Frequency: 50/60Hz

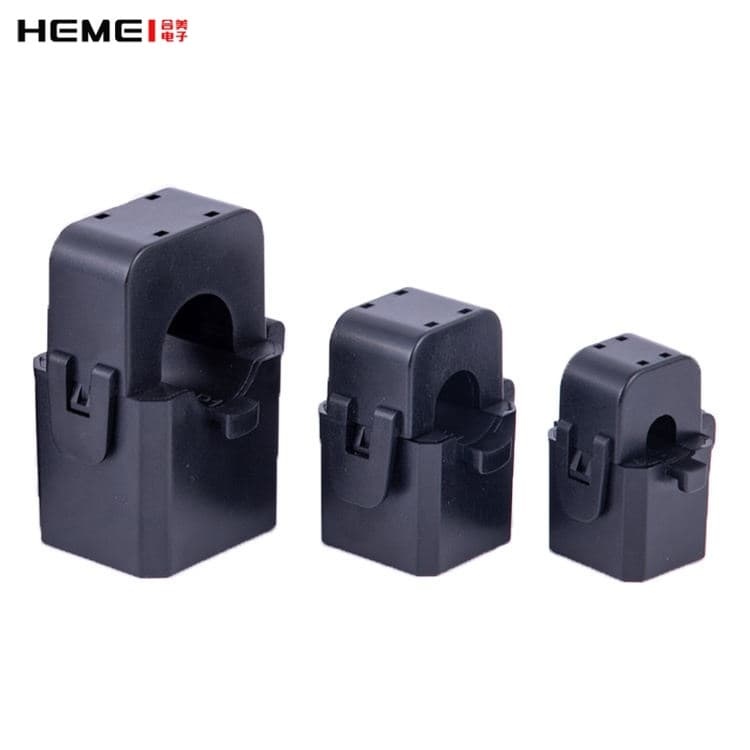

Size comparison table: (products can be customized)

Basic parameters:

Hemei Electronics has rich experience in R&D, design and production of current transformers and other products, which are widely trusted by customers all over the world, and we welcome you to contact us at any time if you have any needs!
