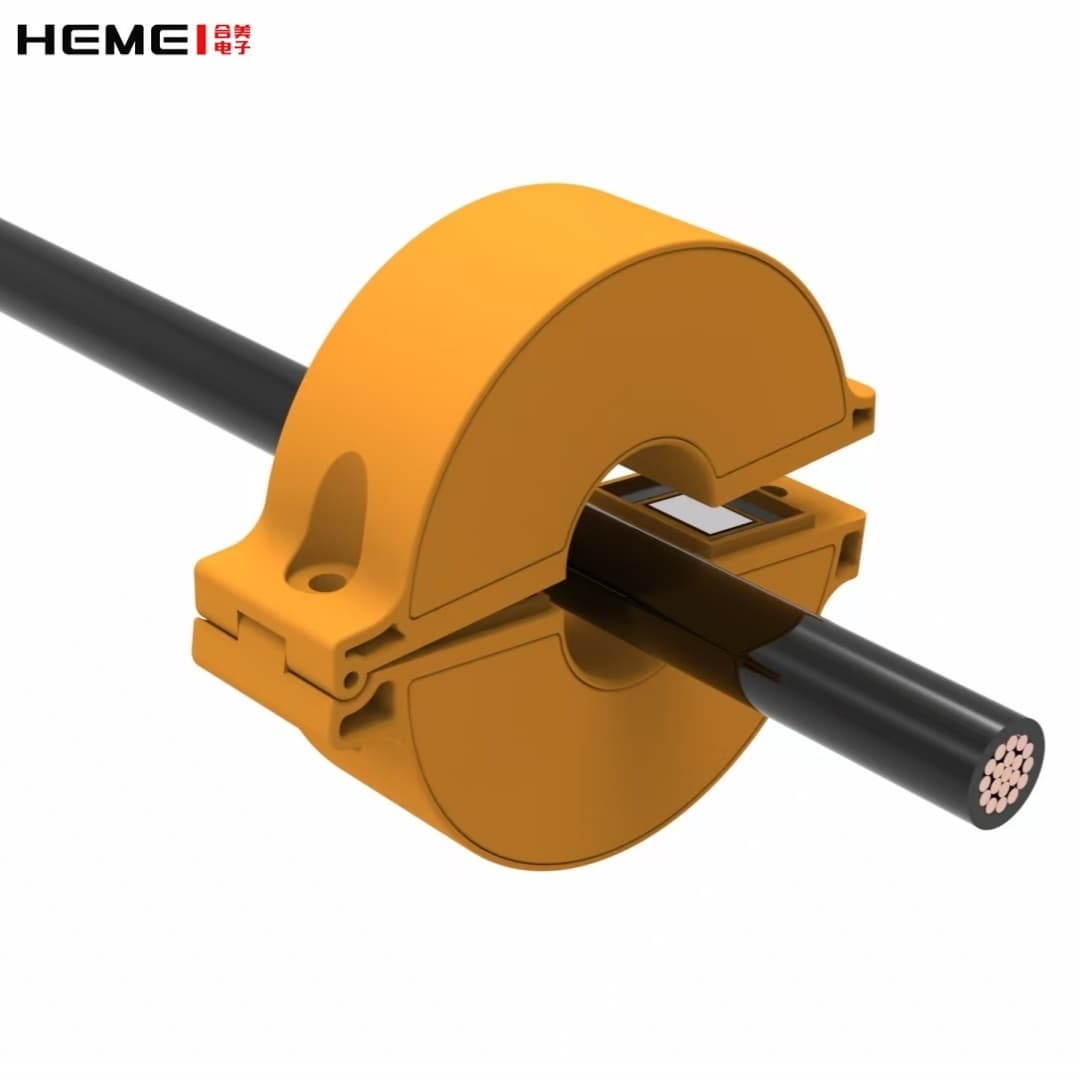

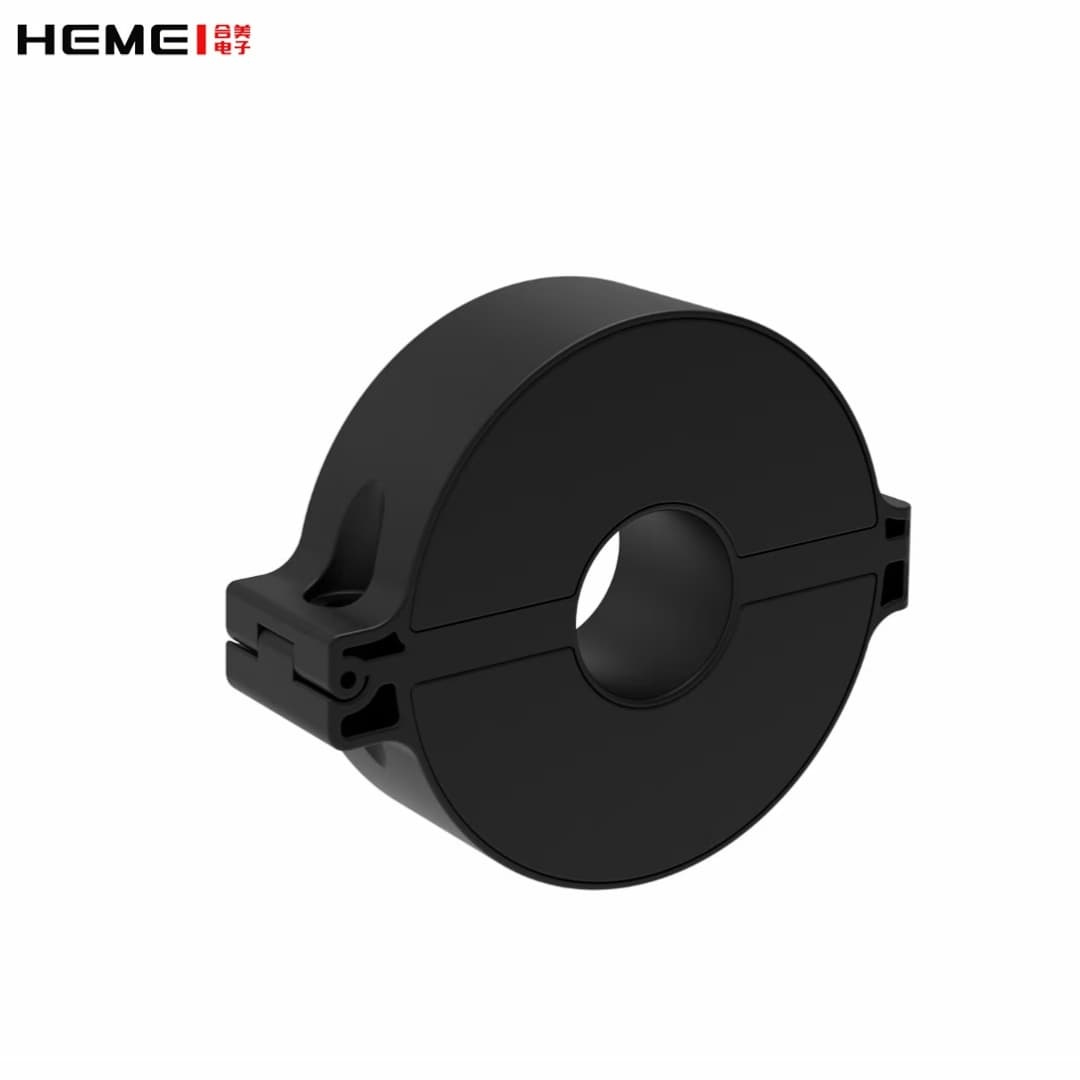

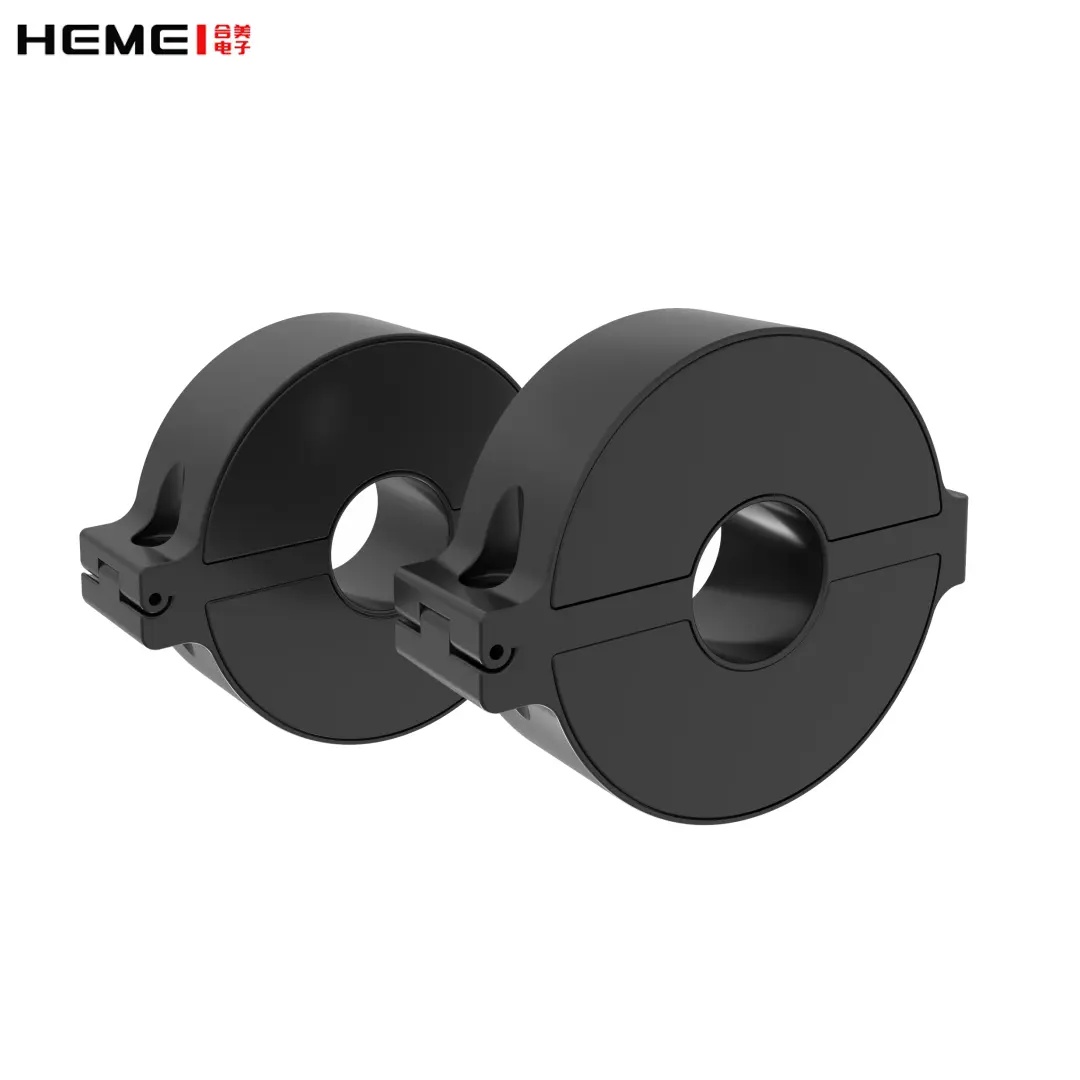

40mm 600A Customised Toroidal Split CT Split Core Current Transformer

Introduction：

Split-core current transformer AC current from 5 to 500 Amps passing through the center conductor. Split core CTs are designed for fast and easy installation.The split core design permits non-contact current measurements through magnetic field induction without requiring that the primary wire be taken offline and disconnected for CT installation.This method permits a safer,easy and portable current measurement.

Feature：

1. Split core current transformer with interleaved joint and hinge structure

2. Wide range of sizes to accommodate all the existing installations

3. Split core CT current transformer

4. Epoxy Potting, Double-screw fastening

5. Wide inner window, allowing clamping of big cables or bus-bars

6. Test range: 5 to 1000A AC input, output of 0-10V(AC) or 0-5A

7. High accuracy and reliability

8. Test hole series size clamp leaker AC current transformer

9. Inherit the simple structure of the traditional C cores

10. Clamp-on core design, safer, easier installation, portable, don’t need to cut of the grid-power when adjust the inductance

11. Energy conservation & environment protection, huge potential market

Products can be customised

Application:

High-voltage transmission lines/medium-voltage distribution networks/high-speed rail/underground mines/energy consumption monitoring/metallurgy/dock shore power/large pump industry/hydropower and wind power detection/water conservancy monitoring/new energy vehicles/smart power consumption/smart mines/civilian airports/others Industry application

Hemei Electronics' split core current transformers can be customised with various ratios, high frequency, accuracy and other special requirements, welcome to consult us at any time to customise your exclusive products.
