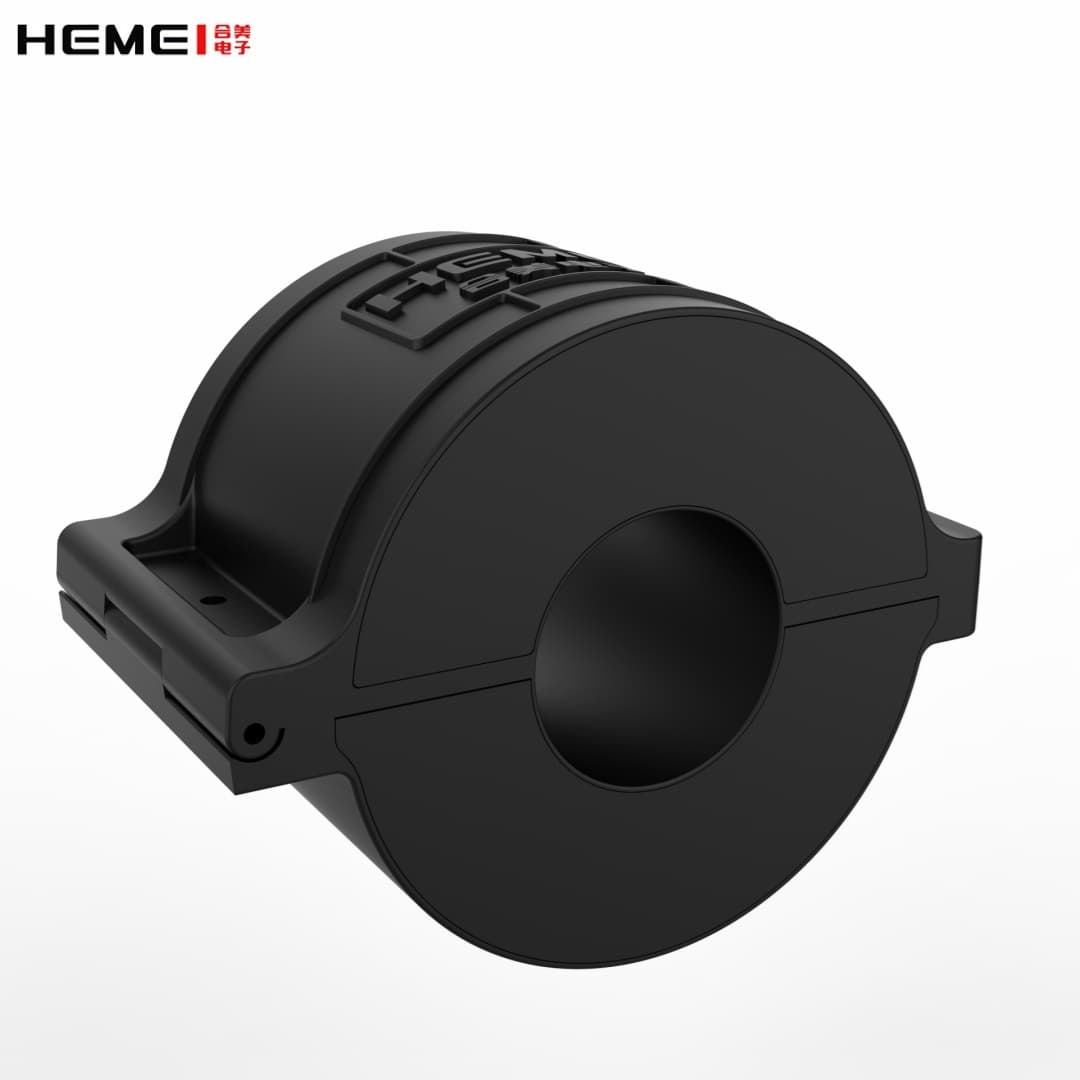

CE Certification Permalloy Core Current Transformer Split Harvesting Energy Current Transformer Self-Powered

Products can be customised

Current transformers for current measurement and inductive power supply, customised with silicon steel or permalloy cores.

  • Work temperature :

    -40℃~70℃
  • Protection level :

    IP68
  • Certification :

    CE, UL
  • Frequency :

    50~60Hz
  • Fire resistance property :

    UL94-Vo
  • Output Power :

    20A / 3W
  • Inner diameter :

    45mm

Introduction:

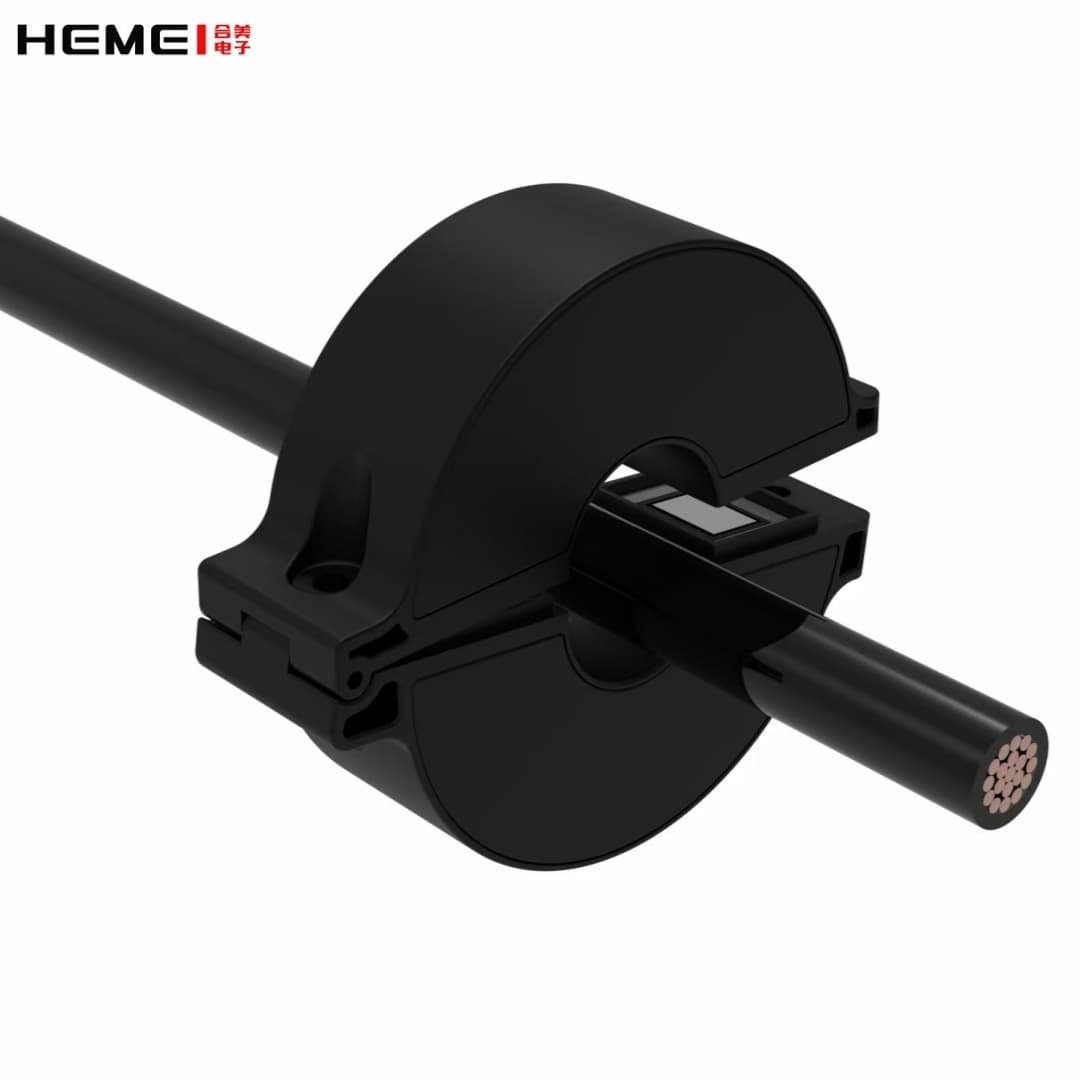

Our energy harvesting current transformers are different from ordinary current transformers in that our open construction allows installation without disconnecting the circuit. In addition to the traditional measuring function, the energy harvesting current transformer can also be used to supply power to other sensors and other accessories through electromagnetic induction in the original circuit.



Feature:

1. The harvesting energy CT is of open structure, easy to install and operate.

2. The inner diameter of the transformer can be selected according to the diameter of the primary high voltage line.

3. Transformers of different types and sizes can be matched according to the current of the primary side high voltage line.

4. Energy transformers and induction power modules are used.

5. Rational planning of load distribution according to the conventional operating values and power curves of the conductor currents.

6. Due to the magnetic circuit, there will be a slight ticking sound when the energy transformer is working, which is a normal phenomenon.



Advantages:

Complete talent team: including magneto-electrical engineers, structural engineers, electrical engineers, etc.

There are many practical engineering cases and rich experience. We have accumulated a lot of engineering application experience in electric power, high-speed rail, smart mines, civil airports, energy consumption monitoring, metallurgy, docks, etc.



Application:

  • New energy vehicles
  • Electricity industry
  • Underground mines
  • High-speed rail
  • metallurgy

Harvesting Energy CT can be customised

Output Power

Inner diameter

Continuous current

Waterproof level

Voltage

Accuracy

Core Material

10A/0.5W

40mm

1250A

IP65~IP68

5550KV

0.5

permalloy / silicon steel

20A/3W

45mm

1250A

IP65~IP68

5550KV

0.5

permalloy / silicon steel

30A/5W

45mm

1250A

IP65~IP68

5550KV

0.5

permalloy / silicon steel

10A/1W

50mm

4000A

IP65~IP68

5550KV

0.5

permalloy / silicon steel

20A/3W

60mm

1250A

IP65~IP68

5550KV

0.5

permalloy / silicon steel

20A/4W

120mm

2000A

IP65~IP68

5550KV

0.5

permalloy / silicon steel

20A/3W

160mm

1250A

IP65~IP68

5550KV

0.5

permalloy / silicon steel

20A/5W

160mm

1250A

IP65~IP68

5550KV

0.5

permalloy / silicon steel

20A/3W

160mm

2000A

IP65~IP68

5550KV

0.5

permalloy / silicon steel

20A/3W

180mm

2000A

IP65~IP68

5550KV

0.5

permalloy / silicon steel



Dimension drawing:

Fast response and delivery capability are the advantages of Hemei Electronics, which rewards customers' trust with high performance and high quality products with fast delivery time. Our current sensing pickup products are designed to lead the industry, if you need products in this area, welcome to leave a message below!
