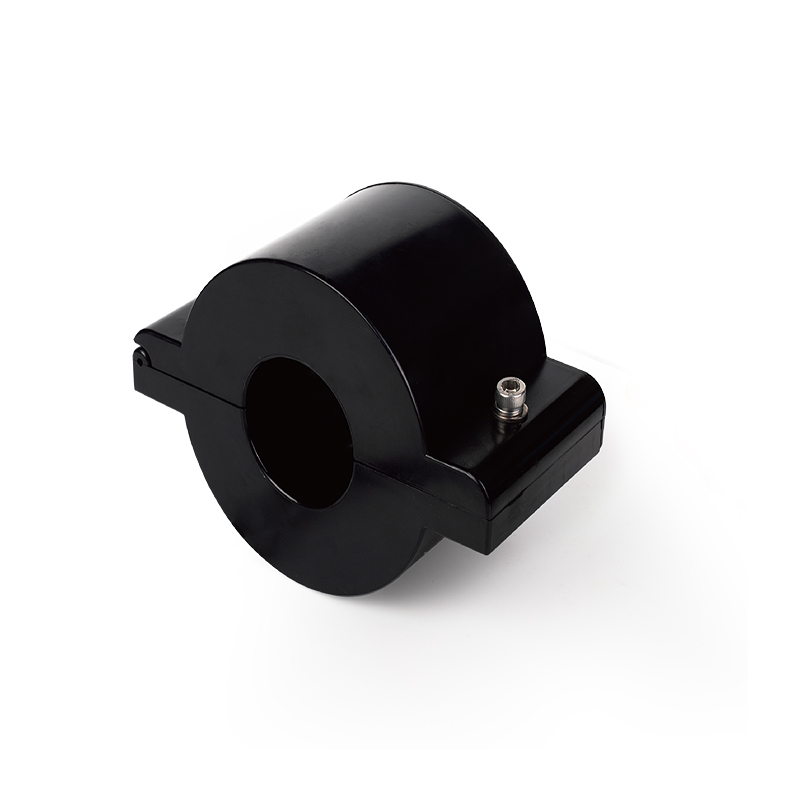

10A Silicon Core CT Use for Underground Mines Harvesting Energy Current Transformer

Introducing:

Hemei Electronics is a high-tech enterprise specializing in the research and development, production and sales of harvesting energy current transformer (CT power taking devices) in the power system high-voltage power taking industry. Customers provide a complete solution for obtaining electricity from 10KV-500KV high-voltage environments to help customers obtain electricity in extremely special and demanding high-voltage environments.

Feature:

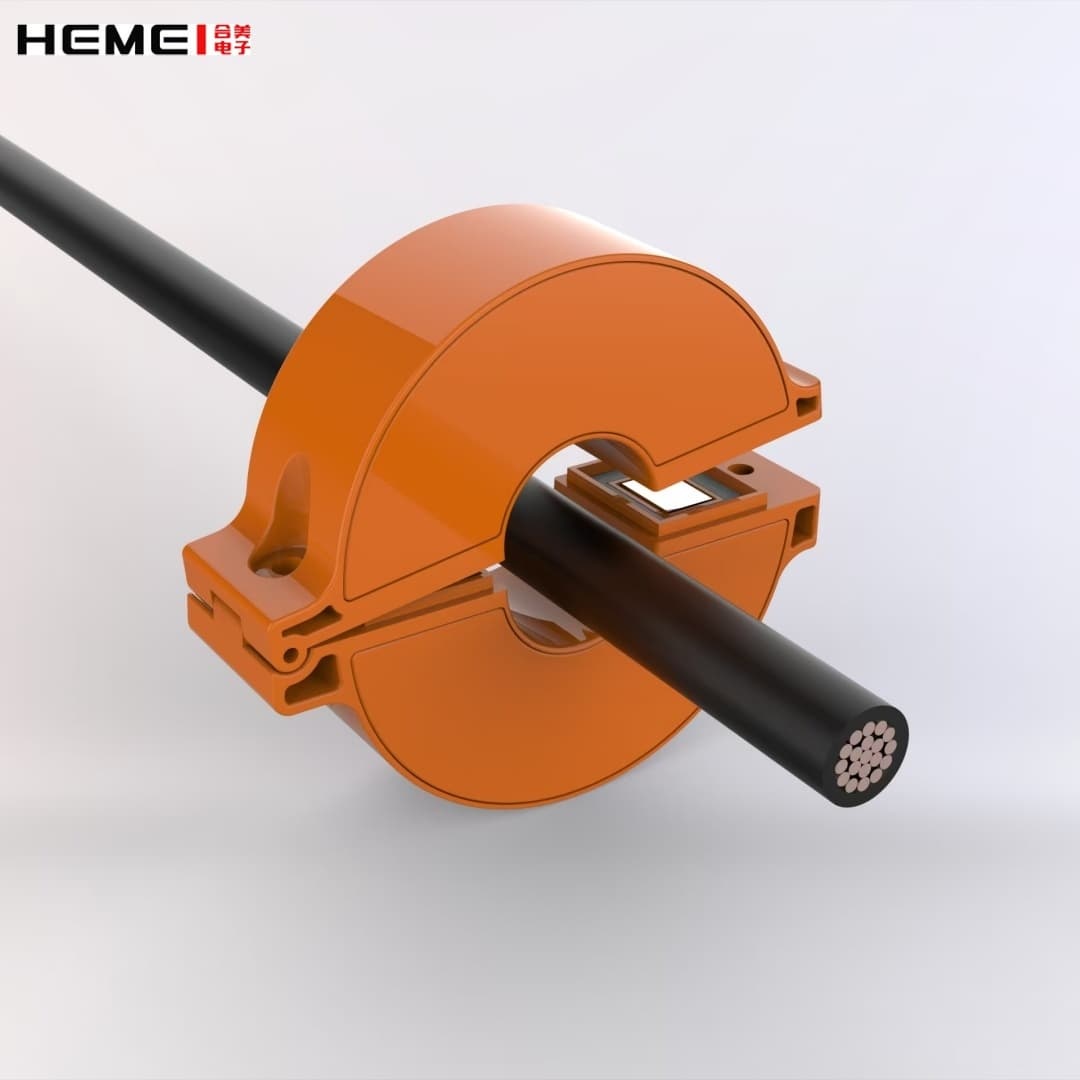

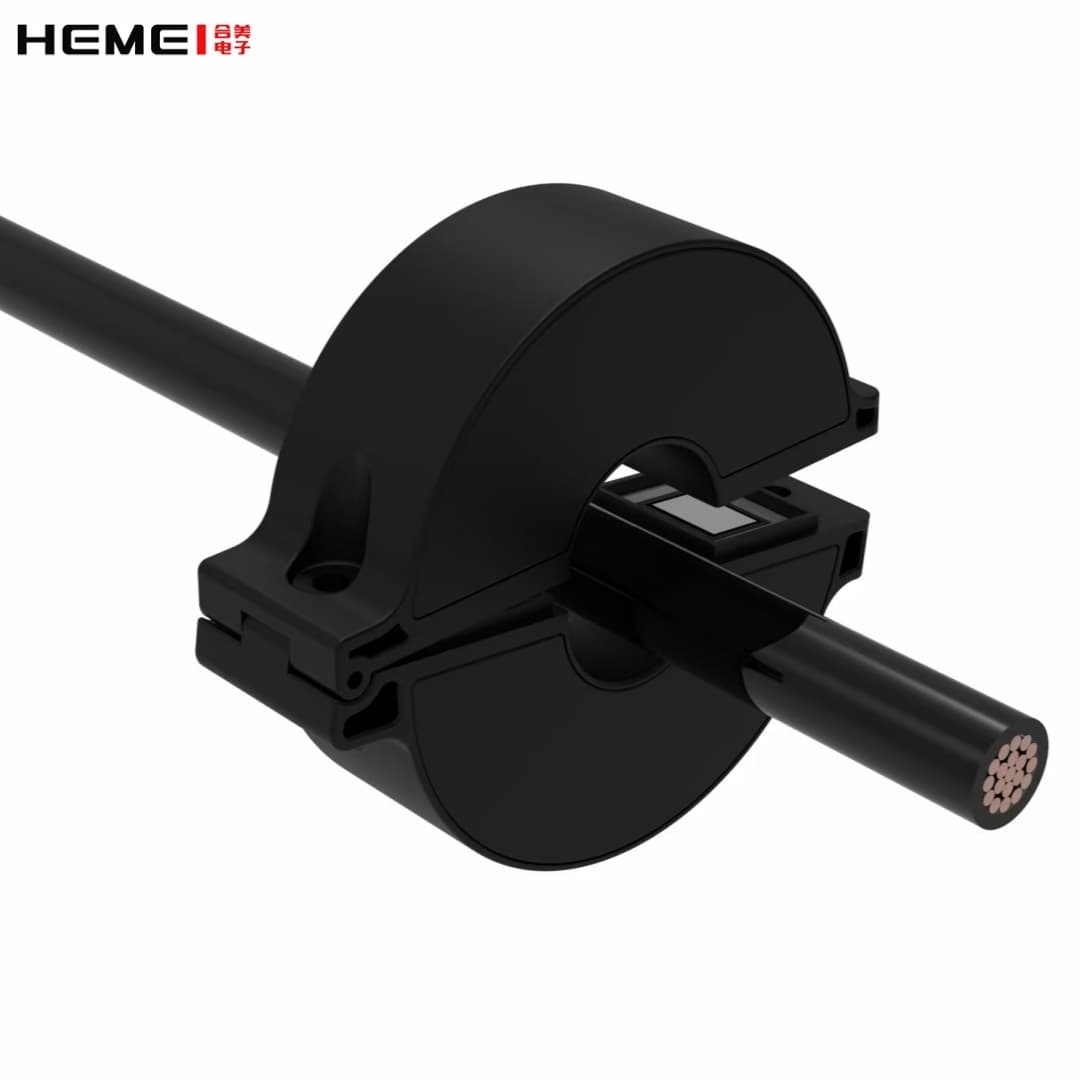

1. The harvesting energy CT is of open structure, easy to install and operate.

2. The inner diameter of the transformer can be selected according to the diameter of the primary high voltage line.

3. Transformers of different types and sizes can be matched according to the current of the primary side high voltage line.

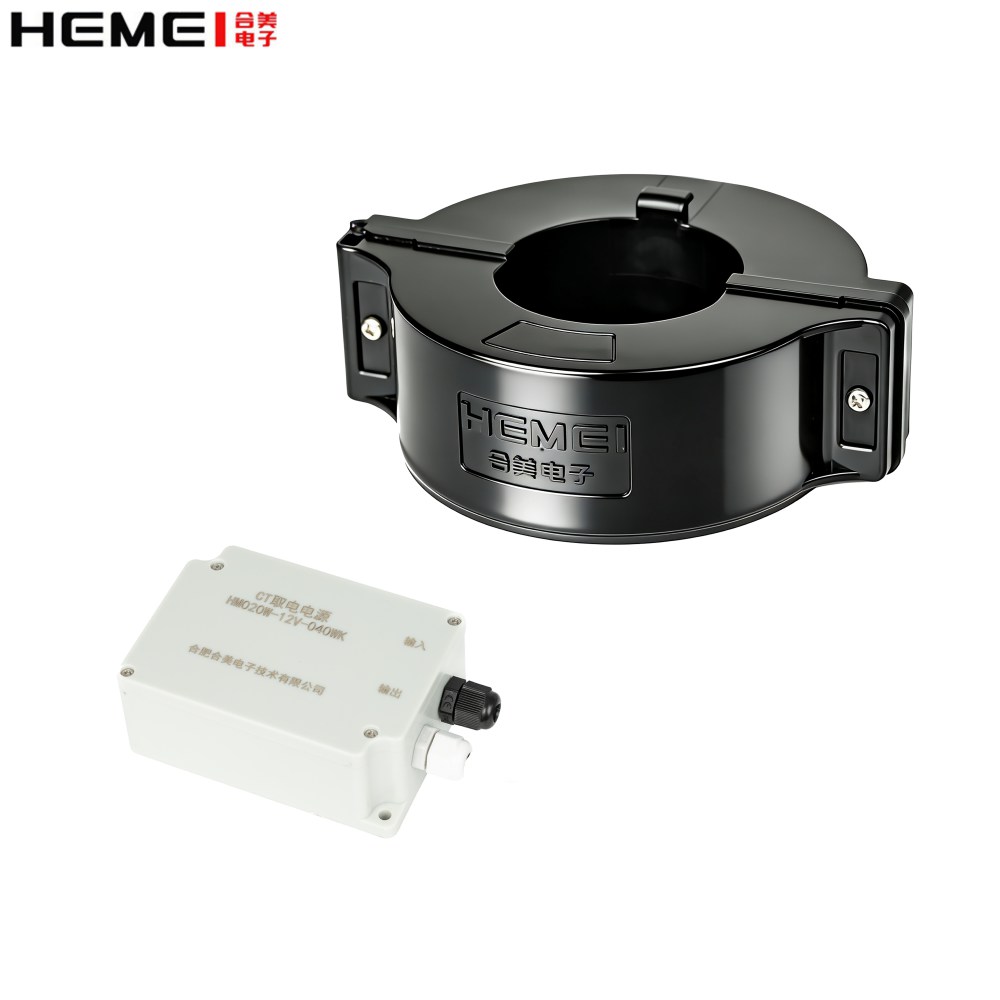

4. Energy transformers and induction power modules are used.

5. Rational planning of load distribution according to the conventional operating values and power curves of the conductor currents.

6. Due to the magnetic circuit, there will be a slight ticking sound when the energy transformer is working, which is a normal phenomenon.

Application：

High-voltage transmission lines / medium-voltage distribution networks / underground mines / energy consumption monitoring / hydropower and wind power detection / dock shore power / large pump industry / water conservancy monitoring / smart power consumption / smart mines/civilian airports/others Industry application

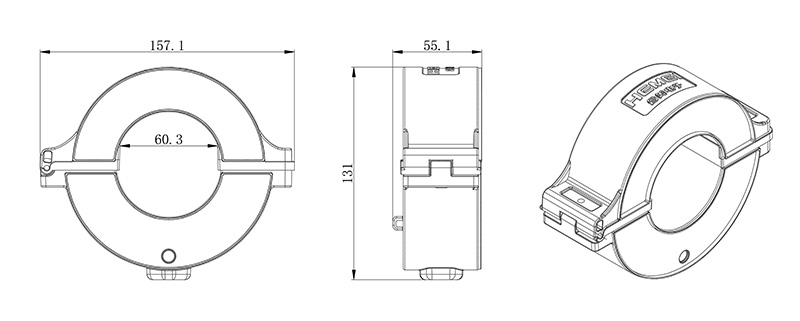

Dimension drawing：

Services process：

Raw material control - production and processing - product manufacturing - finished product testing - finished product warehousing - after-sales quality tracking
