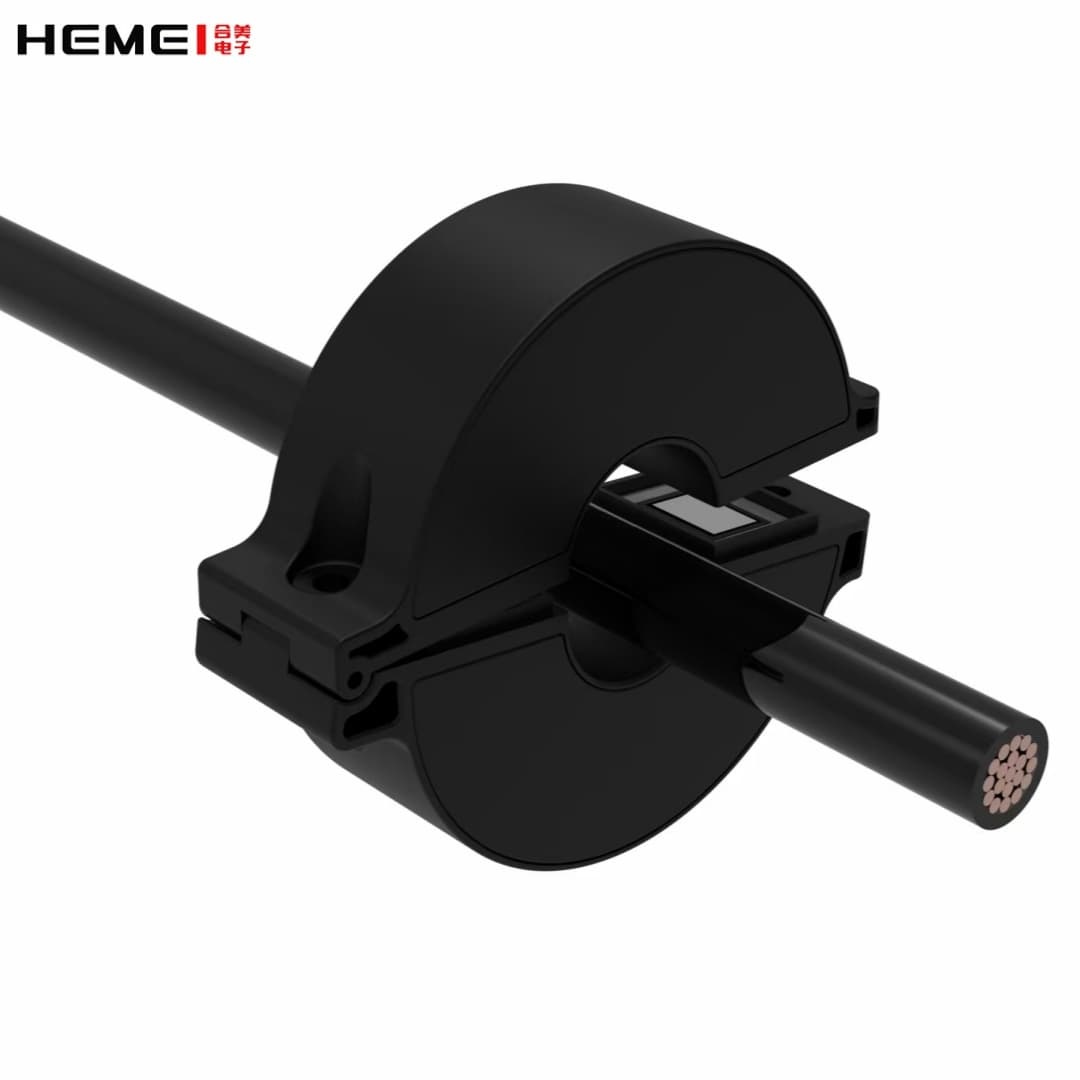

Cable Underground Branch Power Supply CT Harvesting Energy Current Transformer

high precision split core current transformer

Cable Underground Branch Power Supply CT Harvesting Energy Current Transformer

Products can be customised

The split harvesting energy current transformer is easy to install and replace, and can provide power to other components.

Work temperature :
-40℃~70℃
Protection level :
IP68
Certification :
CE, UL
Frequency :
50～60Hz
Fire resistance property :
UL94-Vo
Output Power :
10A / 1W
Inner diameter :
50mm

Inquiry now

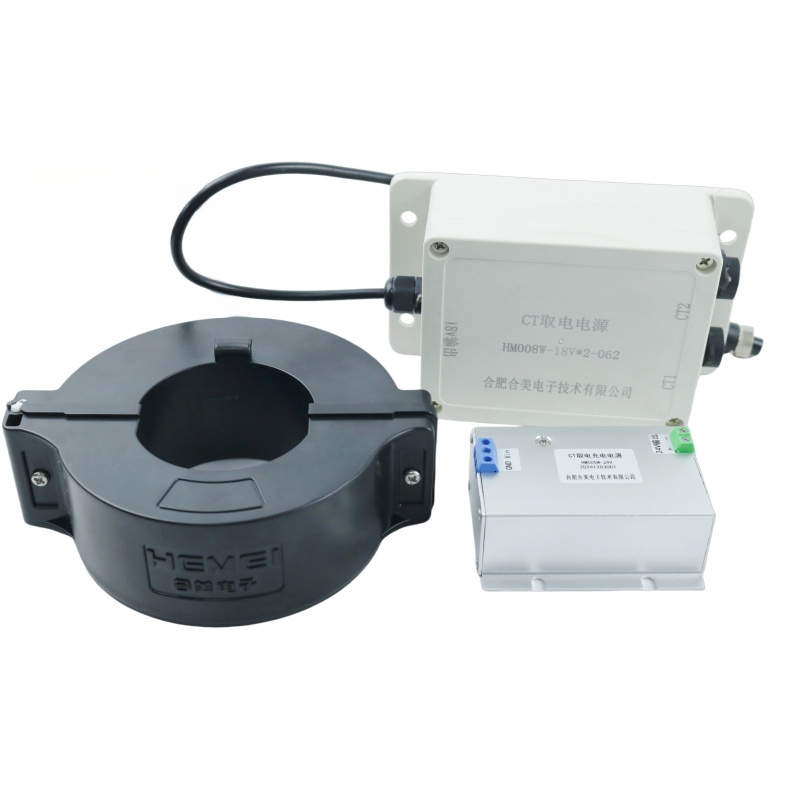

Product Details

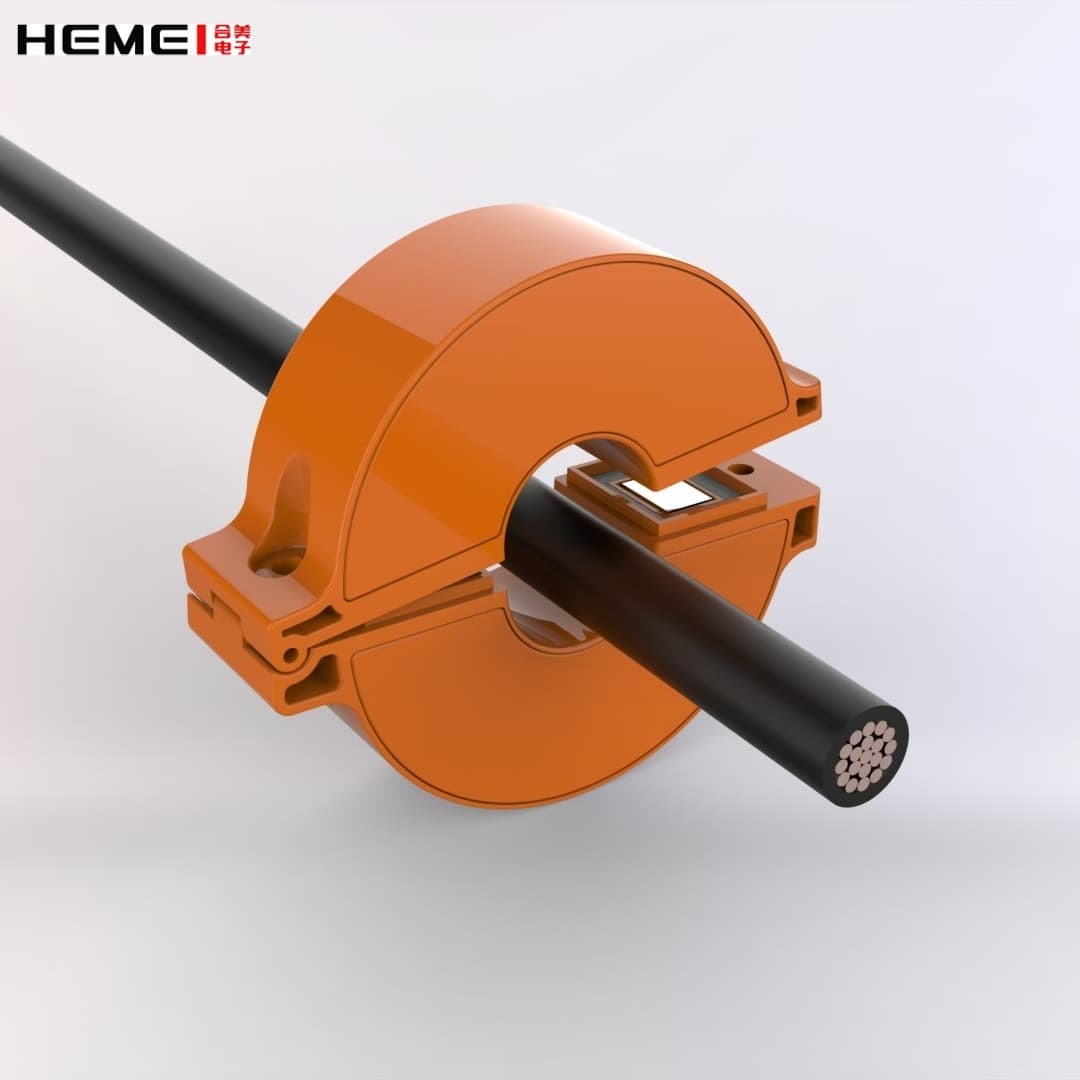

Introducing:

Harvesting energy current transformer using the principle of electromagnetic induction, the wire current generated by the magnetic field through the magnetic ring coil induction of electrical energy, the magnetic ring coil adopts the open and close structure, directly stuck in the cable wire, coil output after AC / DC conversion, the output of the regulated DC power supply.

Application：

High-voltage transmission lines/medium-voltage distribution networks/high-speed rail/underground mines/energy consumption monitoring/metallurgy/dock shore power/large pump industry/hydropower and wind power detection/water conservancy monitoring/new energy vehicles/smart power consumption/smart mines/civilian airports/others Industry application

New energy vehicles
Electricity industry
Underground mines
High-speed rail
energy consumption testing

Feature:

1. The harvesting energy current transformer is of open structure, easy to install and operate.

2. The inner diameter of the transformer can be selected according to the diameter of the primary high voltage line.

3. Transformers of different types and sizes can be matched according to the current of the primary side high voltage line.

4. Energy transformers and induction power modules are used.

5. Rational planning of load distribution according to the conventional operating values and power curves of the conductor currents.

6. Due to the magnetic circuit, there will be a slight ticking sound when the energy transformer is working, which is a normal phenomenon.

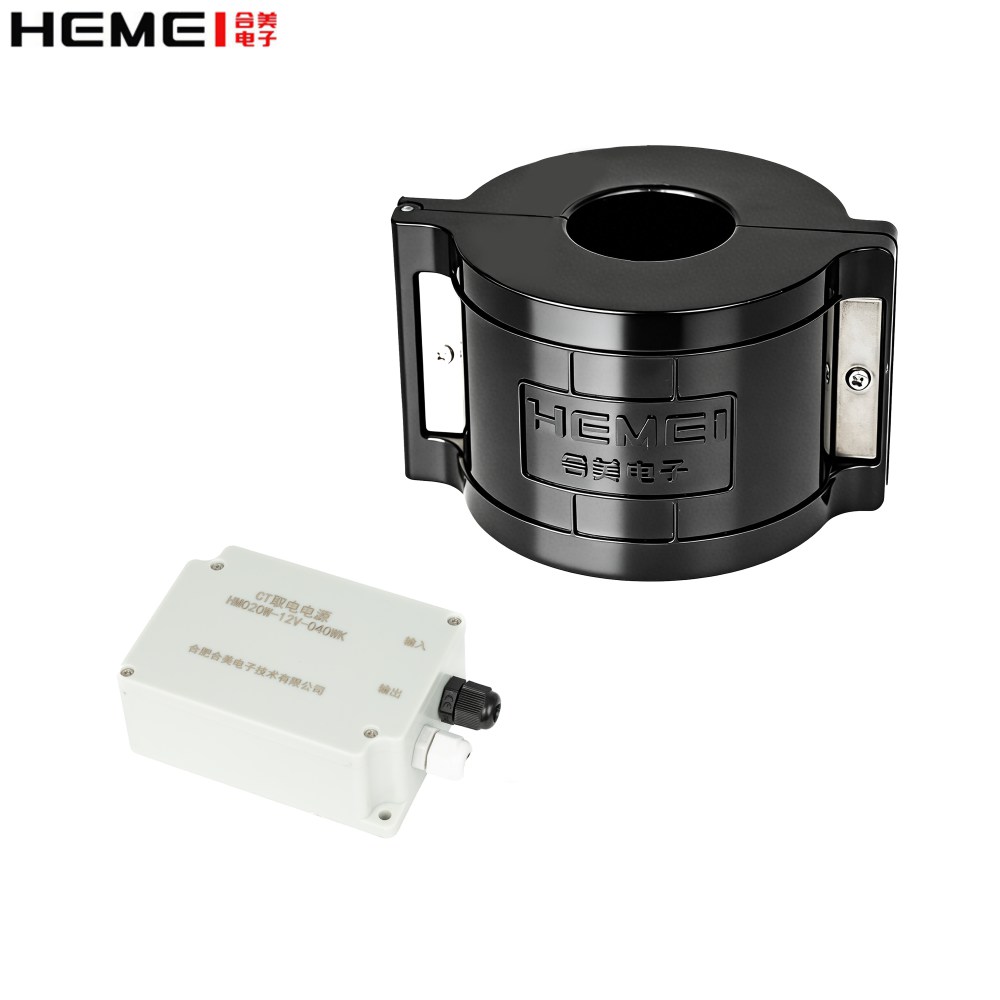

Harvesting Energy CT can be customised

Output Power	Inner diameter	Continuous current	Waterproof level	Voltage	Accuracy	Core Material
10A/0.5W	40mm	1250A	IP65~IP68	5～550KV	0.5	permalloy / silicon steel
20A/3W	45mm	1250A	IP65~IP68	5～550KV	0.5	permalloy / silicon steel
30A/5W	45mm	1250A	IP65~IP68	5～550KV	0.5	permalloy / silicon steel
10A/1W	50mm	4000A	IP65~IP68	5～550KV	0.5	permalloy / silicon steel
20A/3W	60mm	1250A	IP65~IP68	5～550KV	0.5	permalloy / silicon steel
20A/4W	120mm	2000A	IP65~IP68	5～550KV	0.5	permalloy / silicon steel
20A/3W	160mm	1250A	IP65~IP68	5～550KV	0.5	permalloy / silicon steel
20A/5W	160mm	1250A	IP65~IP68	5～550KV	0.5	permalloy / silicon steel
20A/3W	160mm	2000A	IP65~IP68	5～550KV	0.5	permalloy / silicon steel
20A/3W	180mm	2000A	IP65~IP68	5～550KV	0.5	permalloy / silicon steel

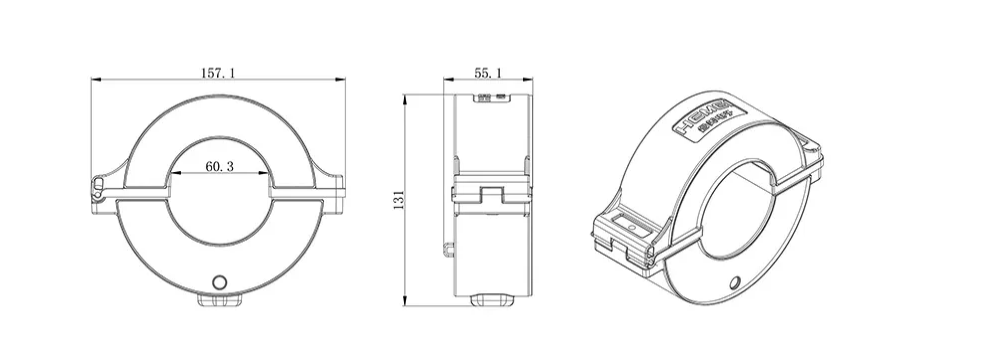

Dimension drawing：

The harvesting energy current transformer of Hemei Electronics are widely used and are at the forefront of research and development in the production industry, if you need our energy extraction solutions, please feel free to contact us.
