The company specialises in the production of soft magnetic materials such as silicon steel sheet, pomo alloy, amorphous, ultra-microcrystalline, etc. Transformer cores, coiled cores The types of cores include toroidal cores, R-type cores, O-type cores, C-type cores, super-silicon steel cores, electric power coiled cores and shaped cores.
Work temperature :
-40℃ ~ 80℃Protection level :
IP68Certification :
UL , CEFrequency :
50 ~ 60HzIntroduction:

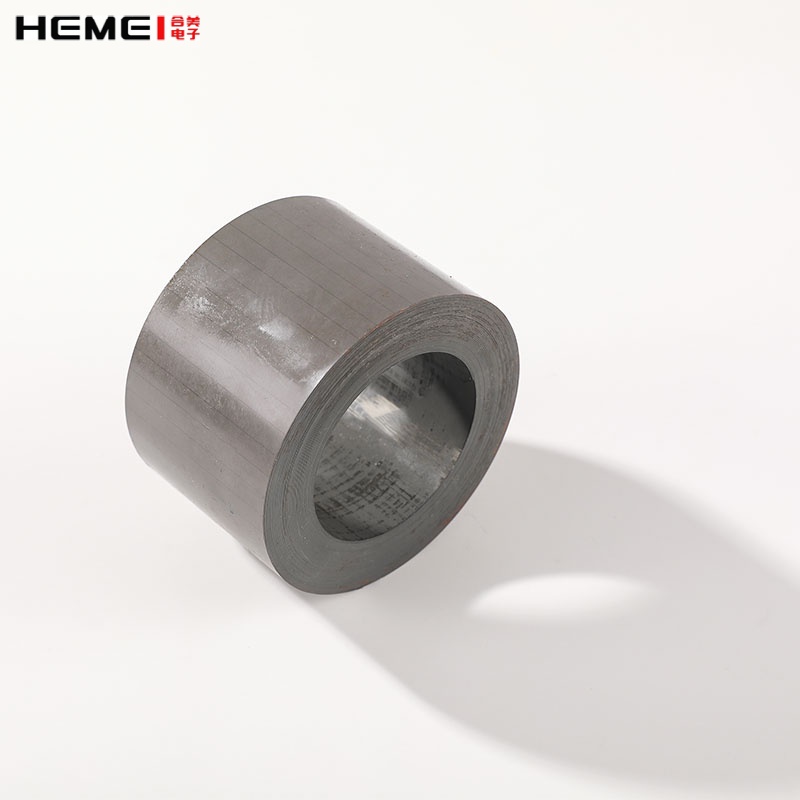

The silicon steel core are suitable for the application in weak magnetic field, can be used for manufacturing high sensitivity and small power transformer, low power magnetic amplifier, relay, head of magnetic recording device, zero sequence current transformer, power converter, precision current transformer, magnetic amplifier, power transformer, choke, pulse transformer, change polarity pulse transformer, DC voltage converter, magnetic modulator, constant inductance element, unipolar pulse transformer, magnetic shielding, and so on.

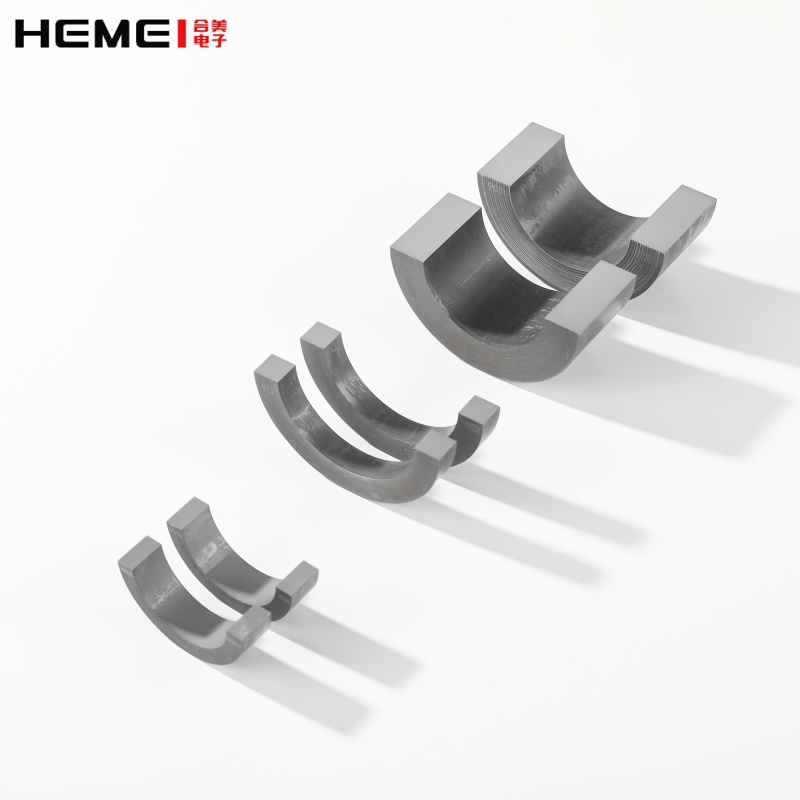

Silicon steel core can be customised
| size ( d * D * B )(mm) |
Cross-sectional area(mm²) |
weight(g) |
volt-ampere characteristic（mV） （1A excitation current output） |
Magnetic circuit length（mm） |
| 184*226*60 | 1260 | 7096 | 7.6 | 643.7 |
| 52.5*90.5*64 | 1216 | 2388 | 27.2 | 224.5 |
| 57*89*58 | 928 | 1861 | 17.3 | 229.2 |
| 55*81*68 | 884 | 1651 | 29.3 | 213.5 |
| 59*89*53 | 795 | 1616 | 19.8 | 232.4 |
| 55*87*40 | 640 | 1248 | 19.8 | 222.9 |
| 60*88*40 | 560 | 1139 | 13.8 | 232.4 |
| 41*72*25 | 387.5 | 602 | 14.1 | 177.4 |
| 66*91*30 | 375 | 809 | 9.9 | 246.5 |
| 59*79*30 | 300 | 569 | 7.3 | 216.7 |
| 62*82*30 | 300 | 593 | 8.8 | 226.1 |
| 59*77*30 | 270 | 504 | 7.3 | 213.5 |
| 59*85*12 | 156 | 309 | 3.6 | 226.1 |
| 55*75*15 | 150 | 268 | 3.3 | 204.1 |
| 61*85*12 | 144 | 289 | 2.1 | 229.2 |
| 60*82*11 | 121 | 326 | 3.9 | 222.9 |
| 43*57*15 | 105 | 144 | 4.3 | 157.1 |
| 24*35*10 | 55 | 45 | 3.1 | 92.6 |
Application:
High-voltage transmission lines/medium-voltage distribution networks/high-speed rail/underground mines/energy consumption monitoring/metallurgy/dock shore power/large pump industry/hydropower and wind power detection/water conservancy monitoring/new energy vehicles/smart power consumption/smart mines/civilian airports/others Industry application
Introduction of chemical rust prevention technology for silicon steel based on passivation technology
Basic Features:
The silicon steel raw materials, magnetic cores and current transformers of Hemei Electronics are exported to various countries and widely praised by customers all over the world, we can customise silicon steel cores of various sizes for you, welcome to leave a message below.
