The company specialises in the production of soft magnetic materials such as silicon steel sheet, permalloy, amorphous, ultra-microcrystalline, etc. Transformer cores, coiled cores The types of cores include toroidal cores, R-type cores, O-type cores, C-type cores, super-silicon steel cores, electric power coiled cores and shaped cores.
Work temperature :
-40℃ ~ 80℃Protection level :
IP68Certification :
UL , CEFrequency :
50 ~ 60HzIntroduction:
Silicon steel is a carbon-silicon ferrous alloy with a silicon content of 0.5 to 4.5 per cent. It has excellent properties such as high magnetic permeability, low coercivity and high coefficient of resistance. Depending on the arrangement of the grains and the degree of aggregation of crystal orientation in silicon steel, it can be divided into non-oriented silicon steel and oriented silicon steel. Oriented silicon steels have grains orientated in the same direction in the rolling direction, which gives them excellent magnetic induction strength and makes them suitable for use in stationary applications such as various types of transformers. Unoriented silicon steels have grains orientated in different directions, and although their magnetic induction strength is weaker than that of oriented silicon steels in the rolling direction, they have good magnetic induction strength in all directions and are suitable for use in rotating machines, such as industrial motors, drive motors for new-energy vehicles, and motors for various types of household electrical appliances.

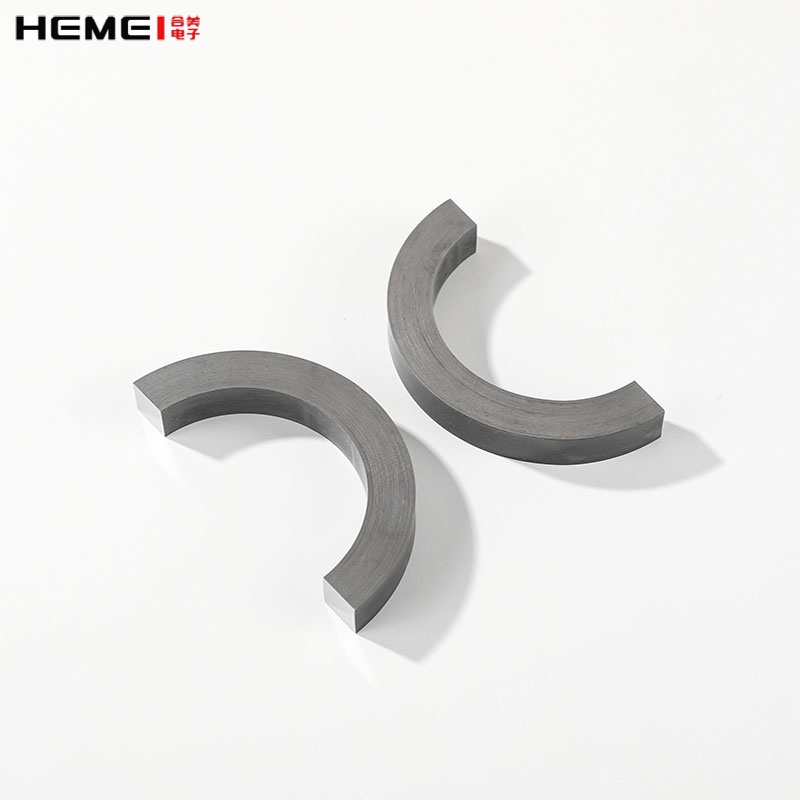

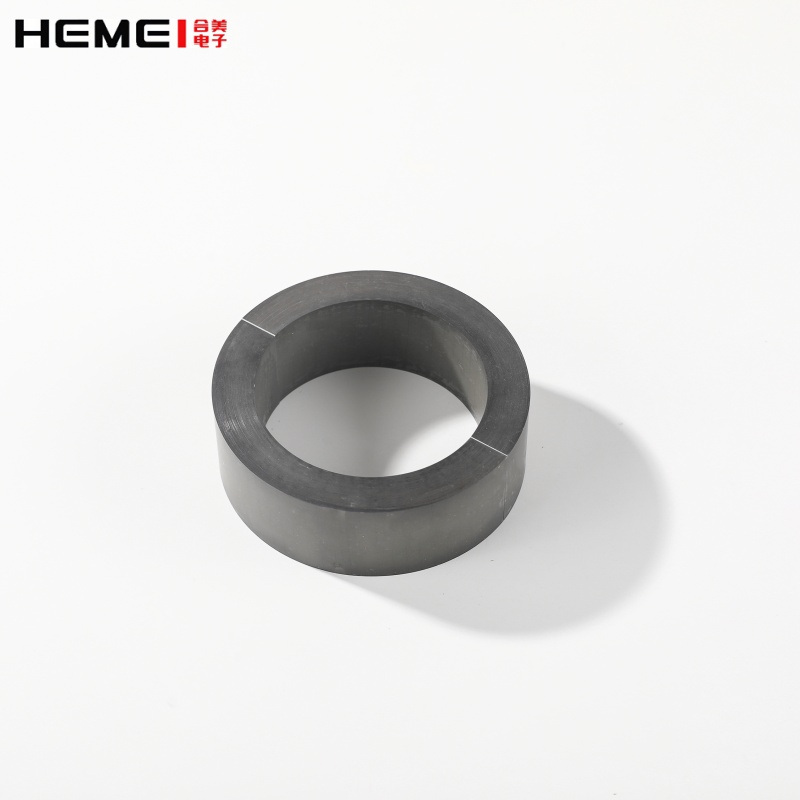

Silicon steel core can be customised
| size ( d * D * B )(mm) |
Cross-sectional area(mm²) |
weight(g) |
volt-ampere characteristic（mV） （1A excitation current output） |
Magnetic circuit length（mm） |
| 184*226*60 | 1260 | 7096 | 7.6 | 643.7 |
| 52.5*90.5*64 | 1216 | 2388 | 27.2 | 224.5 |
| 57*89*58 | 928 | 1861 | 17.3 | 229.2 |
| 55*81*68 | 884 | 1651 | 29.3 | 213.5 |
| 59*89*53 | 795 | 1616 | 19.8 | 232.4 |
| 55*87*40 | 640 | 1248 | 19.8 | 222.9 |
| 60*88*40 | 560 | 1139 | 13.8 | 232.4 |
| 41*72*25 | 387.5 | 602 | 14.1 | 177.4 |
| 66*91*30 | 375 | 809 | 9.9 | 246.5 |
| 59*79*30 | 300 | 569 | 7.3 | 216.7 |
| 62*82*30 | 300 | 593 | 8.8 | 226.1 |
| 59*77*30 | 270 | 504 | 7.3 | 213.5 |
| 59*85*12 | 156 | 309 | 3.6 | 226.1 |
| 55*75*15 | 150 | 268 | 3.3 | 204.1 |
| 61*85*12 | 144 | 289 | 2.1 | 229.2 |
| 60*82*11 | 121 | 326 | 3.9 | 222.9 |
| 43*57*15 | 105 | 144 | 4.3 | 157.1 |
| 24*35*10 | 55 | 45 | 3.1 | 92.6 |
Application:
High-voltage transmission lines/medium-voltage distribution networks/high-speed rail/underground mines/energy consumption monitoring/metallurgy/dock shore power/large pump industry/hydropower and wind power detection/water conservancy monitoring/new energy vehicles/smart power consumption/smart mines/civilian airports/others Industry application
Introduction of chemical rust prevention technology for silicon steel based on passivation technology
Basic Features:
Hemei Electronics offers a wide range of current transformer silicon steel cores for a wide range of applications and customised dimensions, please feel free to let us know your questions and needs.
