Permalloy can be divided into 4 categories according to composition: 35%~40% Ni-Fe alloy, 45%~50% Ni-Fe alloy, 50%~65% Ni-Fe alloy and 70%~81% Ni-Fe alloy . Each type can be made into materials with circular hysteresis loop, rectangular hysteresis loop or flat hysteresis loop.
Work temperature :
-40℃ ~ 80℃Protection level :
IP68Certification :
UL , CEFrequency :
50 ~ 60HzAlloy Grade :
1J85 , 1J86Introduction:
Permalloy strip is an alloy material with high magnetic permeability and high permeability. Its characteristics are: 45%-81% NI medium nickel and high nickel soft magnetic alloy: Bs=0.7-1.6T. The magnetic permeability ranges from 50,000 to 50,000. 500,000, using different
The production process and heat treatment system can obtain ordinary loop-high initial permeability, rectangular loop-high residual magnetic induction, and flat loop-low residual magnetic induction. High magnetic induction, high magnetic permeability and low loss to reduce the weight and volume of magnetic components. Mainly used for metal shields.

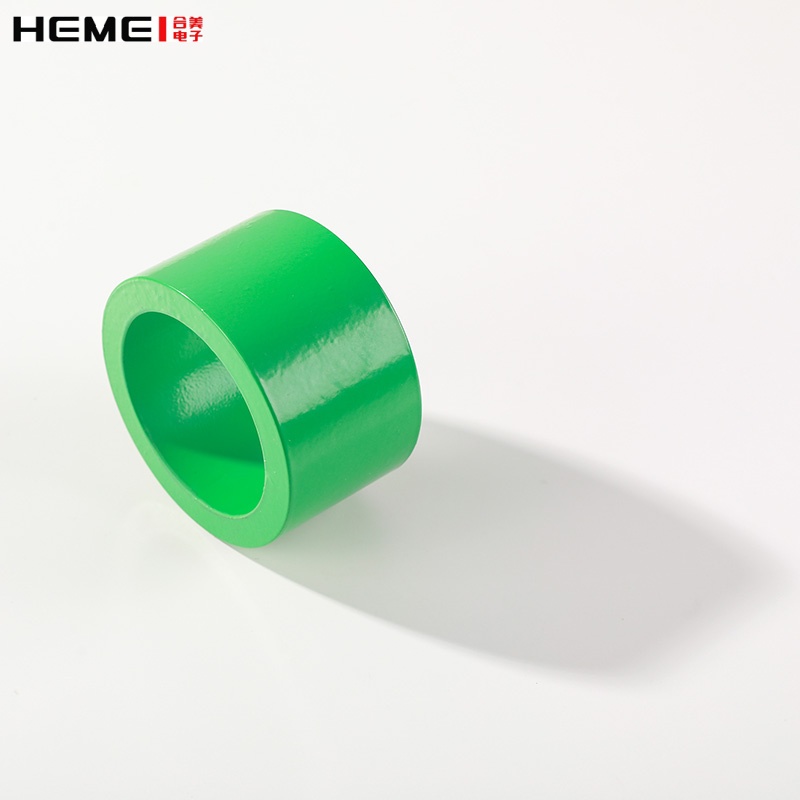

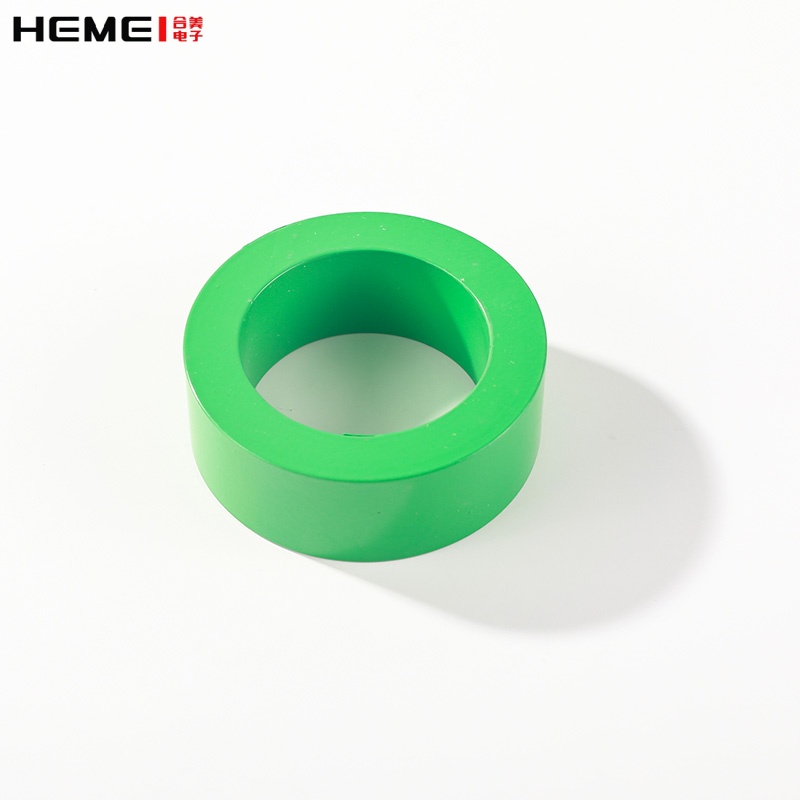

Permalloy are used to harvest energy the electromagnetic ring with 1J85 grade strips:
Permalloy core can be customised
| Size ( d * D * B )(mm) |
Cross-sectional area(mm²) |
Weight(g) |
Inductance（uH）(1K 1V 25℃) | Magnetic circuit length（mm） |
| 45*76*40 | 620 | 973.46 | 70.6 | 189.97 |
| 52*790*40 | 540 | 917.93 | 56.7 | 205.67 |
| 55*95*20 | 400 | 778.56 | 34.7 | 235.5 |
| 42*72*25 | 375 | 554.73 | 49.5 | 178.98 |
| 48*78*25 | 375 | 613.12 | 37.3 | 197.82 |
| 54*84*25 | 375 | 671.51 | 33.1 | 216.66 |
| 55*80*28 | 350 | 613.12 | 38.7 | 211.95 |
| 54*79*28 | 350 | 604.04 | 38.7 | 208.81 |
| 65*90*25 | 312.5 | 628.53 | 29.2 | 243.35 |
| 65*90*20 | 250 | 502.82 | 31.9 | 234.35 |
| 55*75*25 | 250 | 421.72 | 24.7 | 204.1 |
| 55*75*20 | 200 | 337.38 | 25.8 | 204.1 |
| 65*90*15 | 187.5 | 377.12 | 21.4 | 243.35 |
| 55*75*15 | 150 | 253.03 | 21.5 | 204.1 |
| 48*68*15 | 150 | 225.78 | 22.4 | 182.12 |
| 38*59*12 | 126 | 158.59 | 22.3 | 152.29 |
| 70*85*15 | 112.5 | 226.27 | 6.9 | 243.35 |
| 29*50*10 | 105 | 107.64 | 15.7 | 124.03 |
| 127.5*115.5*10.5 | 62.4 | 196.76 | 3.2 | 381.51 |
| 59*69*8 | 40 | 66.44 | 5.7 | 200.96 |
| 52*40*6 | 36 | 42.89 | 5.1 | 144.44 |
| 38*47*4 | 18 | 19.85 | 3.5 | 133.45 |
Application:
The permalloy core are suitable for the application in weak magnetic field, can be used for manufacturing high sensitivity and small power transformer, low power magnetic amplifier, relay, head of magnetic recording device, zero sequence current transformer, power converter, precision current transformer, magnetic amplifier, power transformer, choke, pulse transformer, change polarity pulse transformer, DC voltage converter, magnetic modulator, constant inductance element, unipolar pulse transformer, magnetic shielding, and so on.
Hemei Electronics is the leading designer and manufacturer of power supply technology equipment from no source in China, we have a full range of solutions from raw material selection to production of finished products and field installation, welcome to leave your needs!
