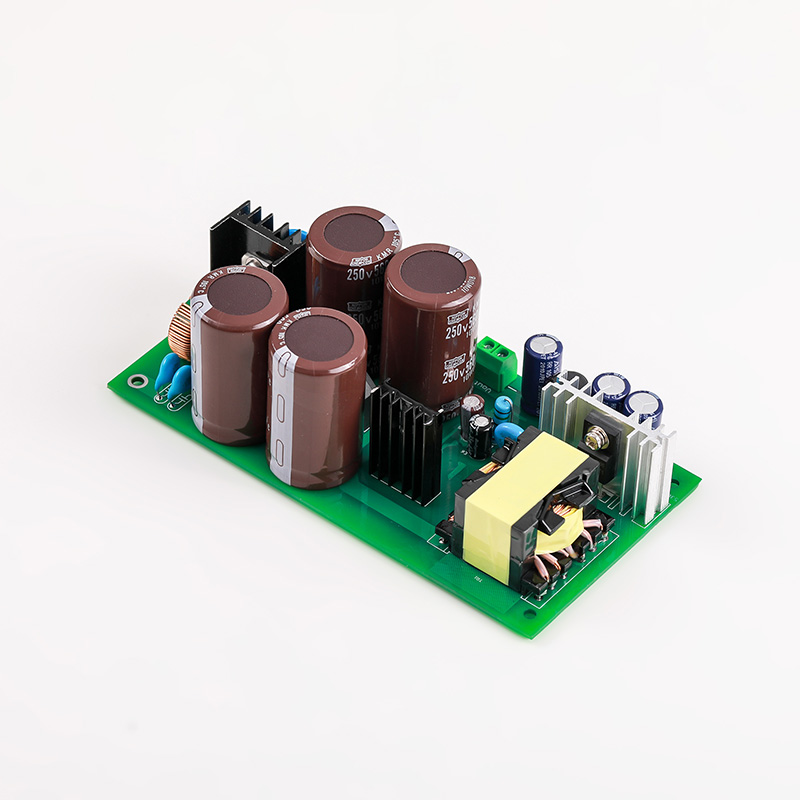

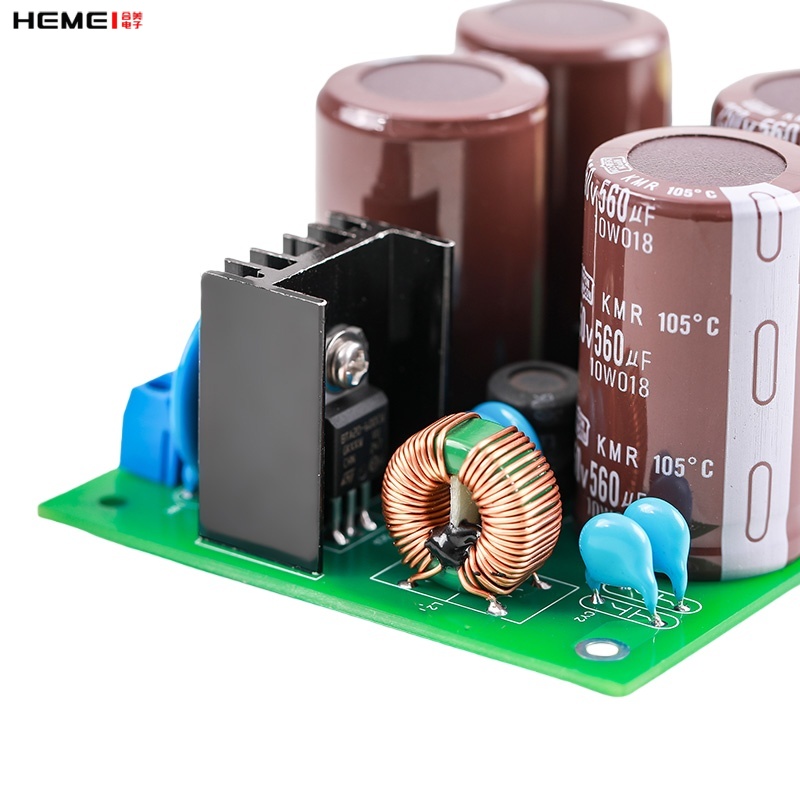

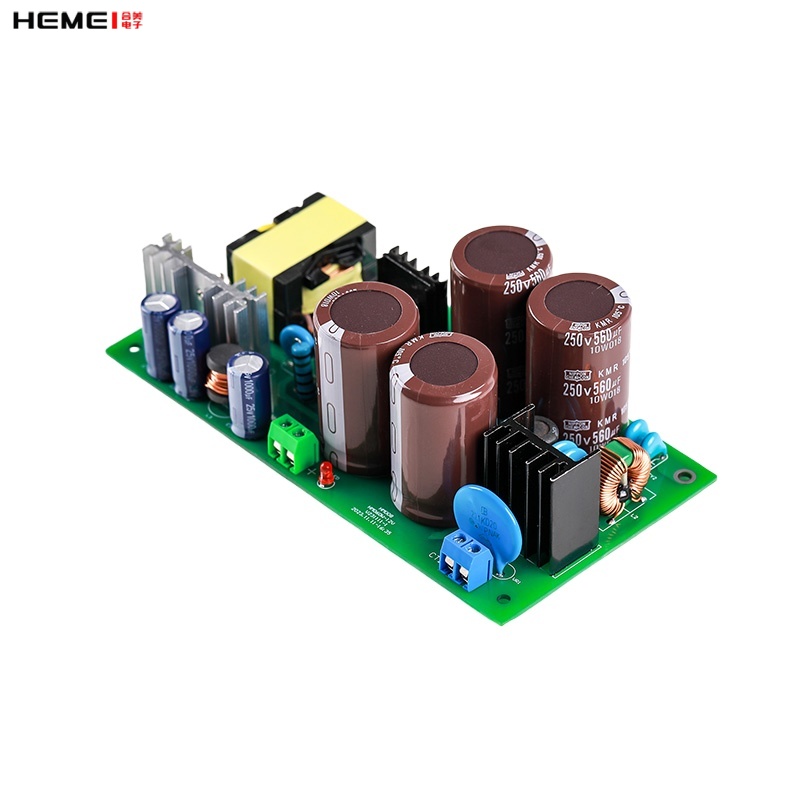

D.C. to D.C. converters and D.C. to A.C. Converters belong to the category of Switched Mode Power Supplies (SMPS). The various types of voltage regulators, used in Linear Power Supplies (LPS), fall in the category of dissipative regulator, as they have a voltage control element usually transistor or zener diode which dissipates power equal to the voltage difference between an unregulated input voltage and a fixed supply voltage multiplied by the current flowing through it. The switching regulator acts as a continuously variable power converter and hence its efficiency is negligibly affected by the voltage difference. Hence the switching regulator is also known as ‘non-dissipative regulator’.

Load Adjustment Rate :
±1%
Overheating protection :
Yes
Open circuit protection :
Yes
Output short circuit protection :
Yes
Ripple and noise :
≤1%
Voltage accuracy :
±1%

Inquiry now Download

Product Details

Introduction:

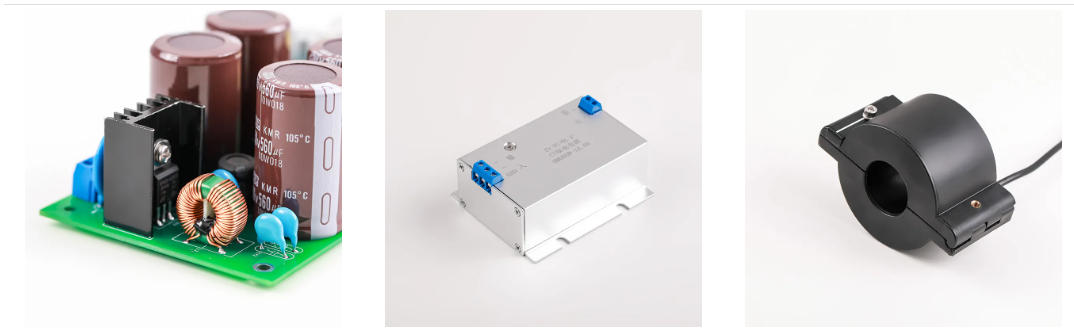

CT power taking device is a new type of induction power taking device that uses electromagnetic energy induced around high-voltage transmission lines to obtain electrical energy. This device uses the principle of electromagnetic induction, uses a current transformer to directly induce AC voltage from the high-voltage bus, and then undergoes rectification, filtering, and voltage stabilization to obtain a stable and reliable DC voltage to provide a stable power supply for electrical equipment installed nearby. It can ensure the long-term stable power supply of the load equipment. It is suitable as a power supply device for on-line detection, monitoring, inspection, anti-theft and other electrical equipment on high-voltage transmission lines.

Switch module power supply can be customised

	Size	Initial starting current（A）	Output voltage（V）	Output power（W）
Micropower power supply	HM010M-3.3	2-10	3.3	10 mW
	HM010M-5.0	2-10	5.0	10 mW
	HM050M-3.3	5-10	3.3	50 mW
	HM050M-5.0	5-10	5.0	50 mW
	HM100M-3.3	5-10	3.3	100 mW
	HM100M-5.0	5-10	5.0	100 mW
	HM500M-5.0	5-10	5.0	500 mW

Small power supply	HM001M-3.3	10-15	3.3	1W
	HM001M-5.0	10-15	5.0	1W
	HM003M-3.3	15-20	3.3	3W
	HM003M-5.0	15-20	5.0	3W
	HM005M-5.0	20-30	5.0	5W
	HM005M-12	20-30	12	5W
	HM010M-12	30-40	12	10W

Features:

1. Start to take electricity from a small load current and maintain a regulated output.

2. CT with open circuit and high current impact protection, and maintain a regulated output.

3. Open type current transformer structure, easy to install and unload.

4. Insulating shell, epoxy potting, explosion-proof and flame-retardant, safe to use.

5. Replace high-pressure PT, economical and practical.

Application:

Suitable for motor protection ,relay protection,small current grounding system
Suitable for electrical fire monitoring systems
Flexible output method
Through structure ,epoxy resin casting,good stability
High permeability permalloy or nanocrystalline ,with good linearity and high sensitivity
Excellent balance characteristics and extremely strong immunity to electromagnetic fields.split-core current transformers. The CT can be mounted to existing panels, such as control centers or load centers, to measure or monitor wattage. These CTs can be mounted without removing existing cables for easier installation.

There are many models of DCAC switched mode power supply(SMPS) from Hemei Electronics, also we can customize the power module you need to match your product, if you are interested in our products, please leave your information below.
