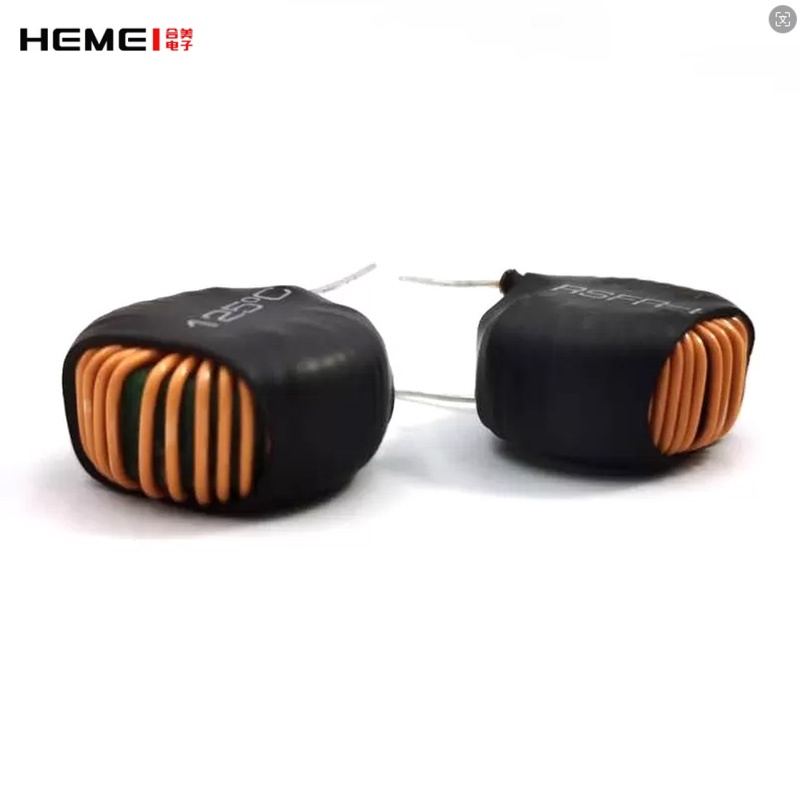

Hot Sell Common Mode Choke Low Power Loss 66UH Min Choke Coil Inductor

Hot Sell Common Mode Choke Low Power Loss 66UH Min Choke Coil Inductor

Common mode choke, abbreviated as CMC, also known as common mode choke, is commonly used in switching power supply to filter common mode EMI signal. In the circuit design, the common mode inductor also plays the role of EMI filtering. Common mode inductance is used to make differential mode signal (required signal) pass through, while common mode signal (noise) cannot pass through. It can be used in electronic products, personal computers, switching power supply and so on.

Protection level :
IP68
Certification :
CE, UL
Material :
Mn, Zn
Usage :
Choke

Inquiry now

Product Details

Introduction：

Choke coil, also known as inductor coil, reactance coil or impedance coil, is an electronic component that plays an important role in controlling the magnitude and phase of current in an AC circuit. It can isolate high frequency currents, generate inertial potentials, and limit the passage of current, thus realizing the control of current in the circuit.

Inductance coil choke inductor

Inductance is a property of a closed loop, that is, when the current passing through the closed loop changes, an electromotive force will appear to resist the change of the current. This kind of inductance is called self-inductance and is the property of the closed loop itself. Assuming that the current in a closed loop changes, an electromotive force is generated in another closed loop due to induction. This inductance is called mutual inductance

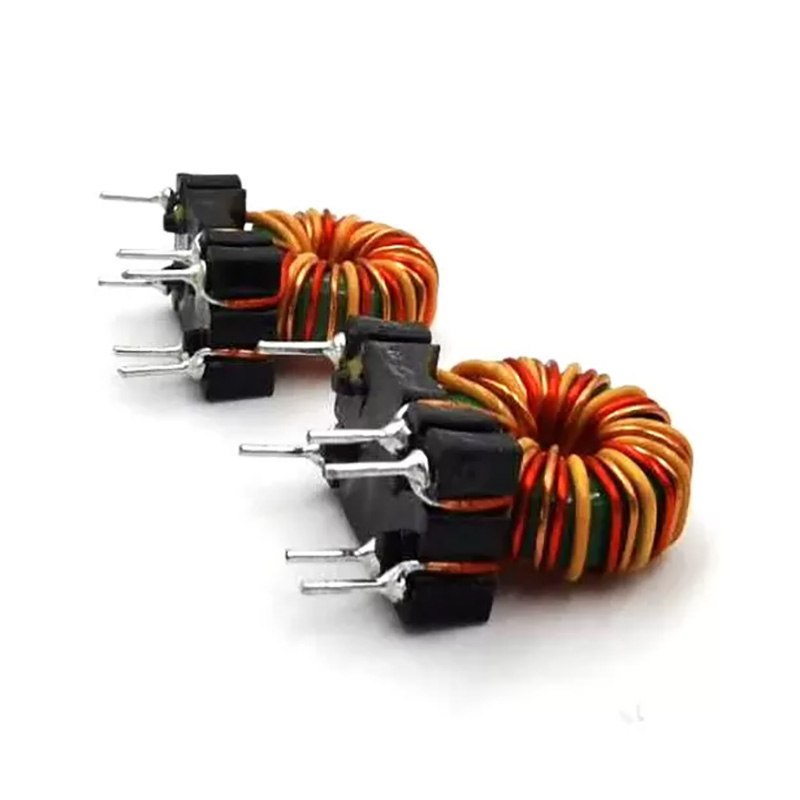

Choke coil inductor can be customised

Item	Test Pin	Test Value	Condition
Inductance	1-4	15mh±30%	1KHZ 0.3V 100Ω
Voltage		5000VAC	2S/2mA

Applications：

Compact fluorescent lamp
Television receiver
Radio cassette player
PC power supply
Monitor,audio,VCD,DCD
UPS
The electronic apparatus
The noise rejection
Induction cooker,etc.

Feature：

High current capacity
Low core loss at frequency
High reliability, efficiency
Small packaged size
Operating Temperature: -30°C to +80°C

Hemei Electronics is specializes in the production of UU filters, EE inductors, integrated inductors, NR inductors, color ring inductors/color code inductors, I-shaped inductors, magnetic ring (ring) coils, common mode inductors, adjustable inductors, power inductors, filter inductors , air-core coils, patch inductors, EMI filters, magnetic bead inductors, broadband six-hole magnetic beads, laminated magnetic beads, magnetic rod coils, etc. A full range of vertical (radial), horizontal (axial) without Source inductance device. If you are interested in our products, or have a need in this area, please feel free to contact us!
